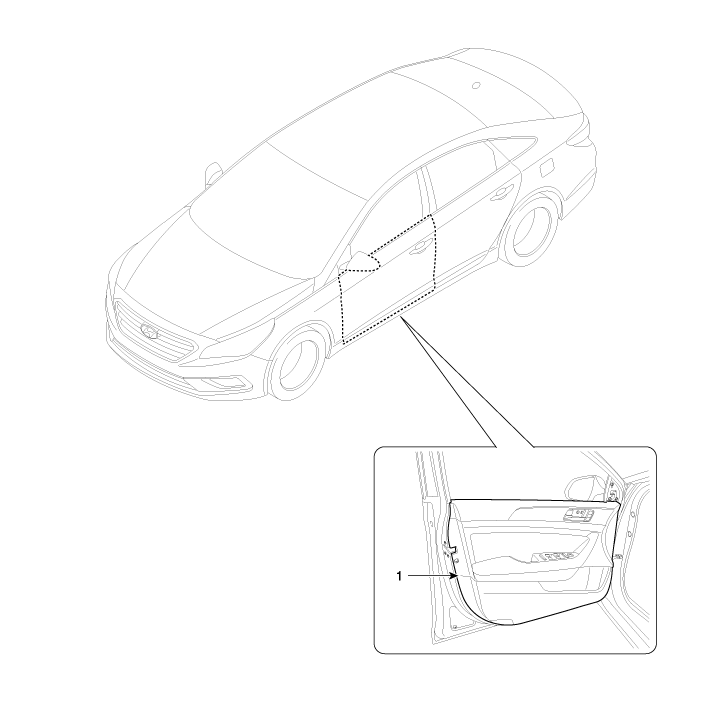

Component Location

1. Front door trim


Repair procedures
Adjustment Glass Adjustment     • Check the glass run channel for damage or deterioration, and replace them if necessary. 1. Remove the front door trim. (Refer to F ...

Front Door Trim Repair procedures
Replacement     • Put on gloves to protect your hands.     • When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with pr ...
