Adjustment

Glass Adjustment

•	Check the glass run channel for damage or deterioration, and replace them if necessary.

1.	Remove the front door trim. (Refer to Front Door - "Front Door Trim")

2.	Remove the front door window glass mounting hole plug (A).

3.	Carefully move the front door window glass (B) until the glass mounting bolts are visible, then loosen them.

4.	Check that the glass moves smoothly.

Door Striker Adjustment

Loosen the bolts (B) just enough for the striker (A) to move.

Tightening torque :

(B) : 16.7 ~ 21.6 N.m (1.7 ~ 2.2 kgf.m, 12.3 ~ 15.9 lb-ft)

2.	Tap on the striker with a plastic hammer to adjust the striker. The striker will not move much, but will give some adjustment.

3.	Hold the outer handle out, and push the door against the body to be sure the striker allows a flush fit. If the door latches properly, tighten the screws and recheck.

Door Position Adjustment

•	After installing the door, check for a flush fit with the body, then check for equal gaps between the front, rear, and bottom, door edges and the body. Check that the door and body edges are parallel. Before adjusting, replace the mounting bolts.

1.	Check that the door and body edges are parallel.

2.	Place the vehicle on a firm, level surface when adjusting the doors.

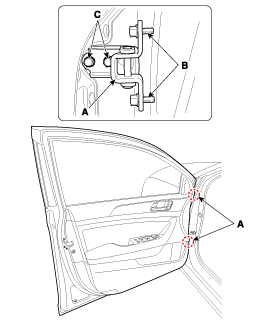

Adjust at the hinges (A) :

A.	Loosen the door mounting bolts slightly, and move the door in or out until it aligns flush with the body.

B.	Loosen the hinge mounting bolts slightly, and move the door backward or forward, up or down as necessary to equalize the gaps.

C.	Place a shop towel on the jack to prevent damage to the door when adjusting the door.

Tightening torque :

(B) : 21.6 ~ 26.5 N.m (2.2 ~ 2.7 kgf.m, 15.9 ~ 19.5 lb-ft)

4.	Grease the pivot portions of the hinges indicated.

5.	Check for water leaks.

Components and Components Location

Components 1. Front door inside handle cap2. Front door pull cap3. Front door trim4. Front door module5. Front door quadrant inner cover6. Front door lower channel7. Front door panel8. Front doo ...

Front Door Trim Components and Components Location

Component Location 1. Front door trim ...
