Hyundai Sonata LF: AVN System / External AMP Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / AVN System / External AMP Components and Components Location

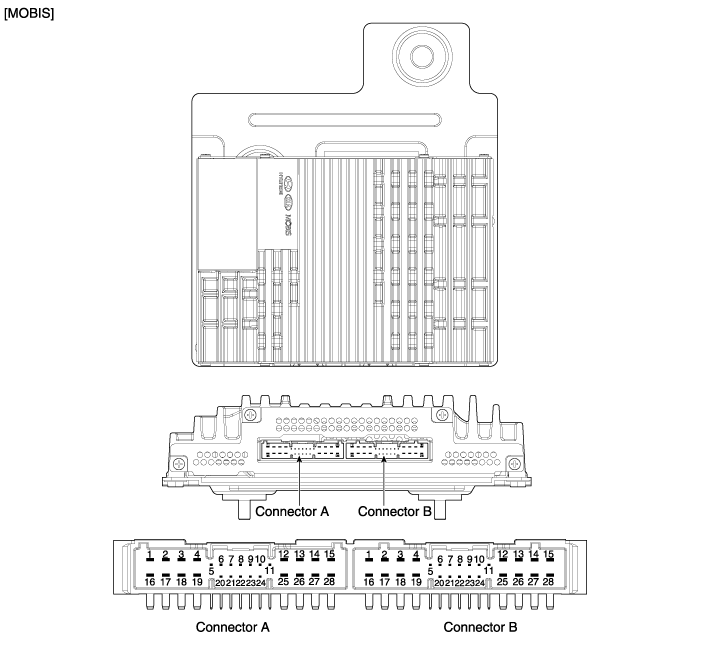

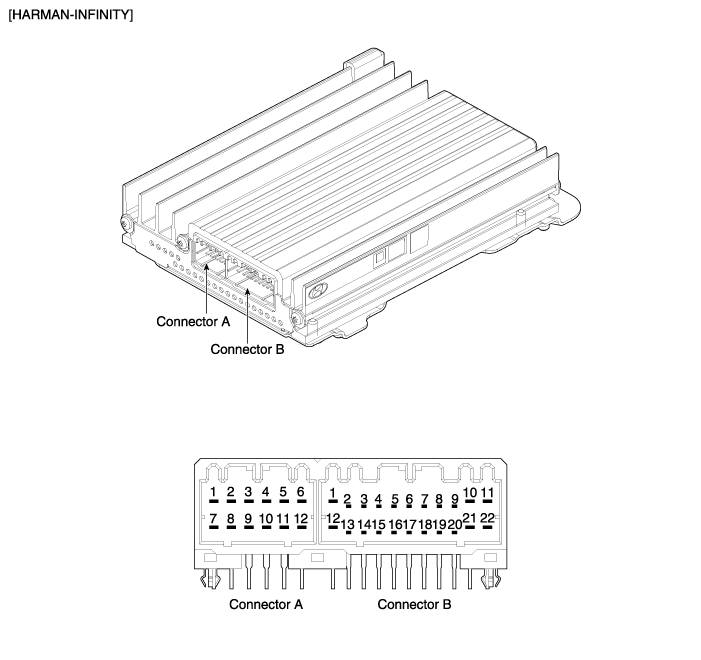

Components

No
Connector A
No
Connector B
1
BATT (+)
1
Front Right Midrange (+)
2
BATT (+)
2
Front Right Midrange (-)
3
BATT (+)
3
Front Left Midrange (+)
4
BATT (+)
4
Front Left Midrange (-)
5
-
5
-
6
Multimedia CAN (High)
6
-
7
Multimedia CAN (Low)
7
-
8
ACC
8
-
9
Navigation voice (+)
9
-
10
-
10
-
11
-
11
-
12
-
12
Rear Right door speaker (-)
13
-
13
Rear Right door speaker (+)
14
-
14
Rear Left door speaker (-)
15
-
15
Rear Left door speaker (+)
16
Ground
16
Subwoofer1 (+)
17
Ground
17
Subwoofer1 (-)
18
Ground
18
Subwoofer2 (+)
19
Ground
19
Subwoofer2 (-)
20
SPDIF (+)
20
-
21
SPDIF (+)
21
-
22
SPDIF GND
22
-
23
Navigation voice (-)
23
-
24
-
24
-
25
-
25
Front Left door speaker (-)
26
-
26
Front Left door speaker (+)
27
-
27
Front Right door speaker (-)
28
-
28
Front Right door speaker (+)

No
Connector A
No
Connector B
1
Front Left door speaker (+)
1
Front Left Midrange (+)
2
Front Right door speaker (+)
2
Front Right Midrange (+)
3
Rear Left door speaker (+)
3
-
4
Rear Right door speaker (+)
4
-
5
Front Center speaker (+)
5
Navigation voice (+)
6
Subwoofer1 (+)
6
ACC
7
Front Left door speaker (-)
7
Multimedia CAN (Low)
8
Front Right door speaker (-)
8
Multimedia CAN (High)
9
Rear Left door speaker (-)
9
-
10
Rear Right door speaker (-)
10
BATT (+)
11
Front Center speaker (-)
11
BATT (+)
12
Subwoofer1 (-)
12
Front Left Midrange (-)
13
 13
Front Right Midrange (-)
14
14
-
15
15
-
16
16
Navigation voice (-)
17
17
SPDIF GND
18
18
SPDIF (-)
19
19
SPDIF (+)
20
20
-
21
21
Ground
22
22
Ground

    AVN(Audio Video Navigation) head unit Repair procedures

    Removal     • Take care not to scratch the cluster fascia panel and related parts. • Eject all the disc before removing the AVN head unit to prevent damaging the DVD player's load mechanism...

    External AMP Repair procedures

    Removal 1. Disconnect the negative (-) battery terminal. 2. Open the trunk, remove the right luggage side trim. (Refer to Body - "Trunk Trim") 3...
