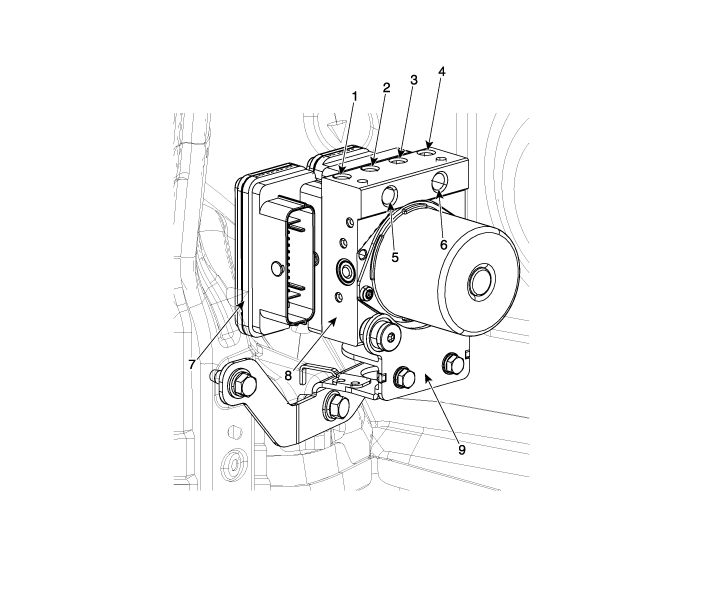

Components

1. Front - left tube
2. Rear - right tube
3. Rear - left tube
4. Front - right tube
5. MC2

6. MC1
7. EPS control module(HECU) connector
8. EPS control module(HECU)
9. Bracket

Steering Angle Sensor Repair procedures

Adjustment Calibration (Setting up the zero angle) Steering Wheel Angle Sensor of a absolute angle type (CAN type) measures the angle under the standard of the zero angle set. Calibration must be ...

ESP Control Unit Repair procedures

Removal 1. Turn the ignition switch OFF. 2. Pull up the lock of the HECU connector , then disconnect the connector. 3. Disconnect the brake tubes from the HECU by unlocking the nuts counte ...
