Hyundai Sonata LF: Cylinder Block / Cylinder Block Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Engine Mechanical System / Cylinder Block / Cylinder Block Components and Components Location

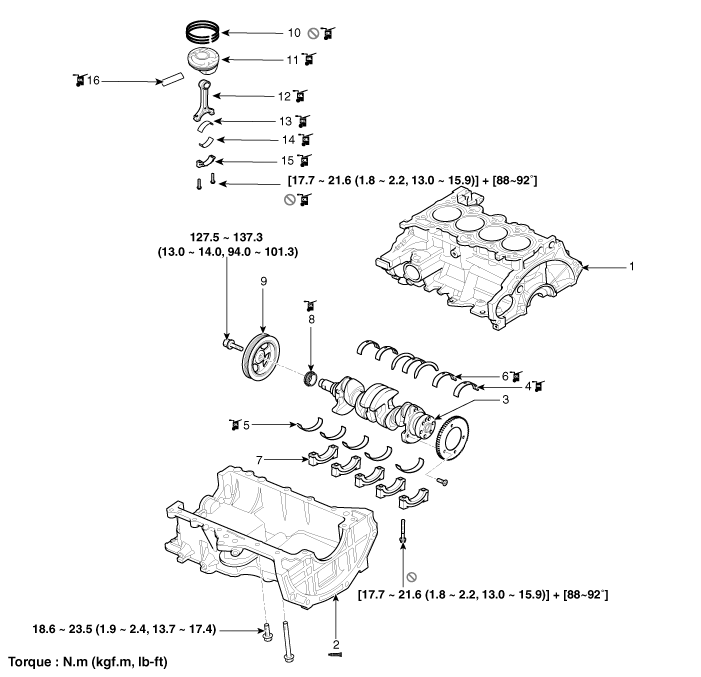

Components

1. Cylinder block
2. Ladder frame
3. Crank shaft
4. Crank shaft upper bearing
5. Crank shaft lower bearing

6. Thrust bearing
7. Main bearing cap
8. Crank shaft sproket
9. Crank shaft pulley
10. Piston ring

11. Piston
12. Connecting rod
13. Connecting rod upper bearing
14. Connecting rod lower bearing
15. Connecting rod bearing cap

Rear Oil Seal Repair procedures

Removal 1. Remove the transaxle assembly. (Refer to transaxle - "Manual Transaxle assembly, Auto Transaxle assembly") 2. MT : Remove the flywheel...

Cylinder Block Repair procedures

Removal Engine removal is required for this procedure. (Refer to Engine and transaxle assembly removal in this group) 1. MT : Remove the flywheel...
