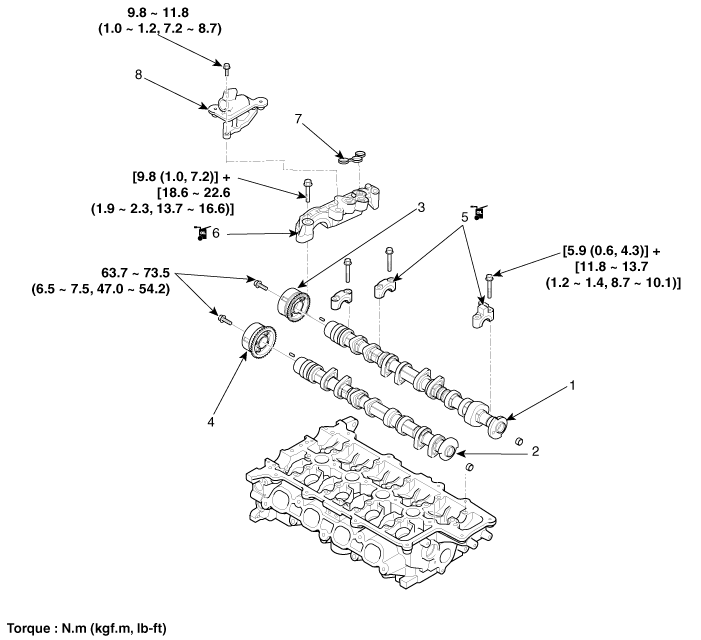

Components

1. Exhaust camshaft
2. Intake camshaft
3. Exhaust CVVT
4. Intake CVVT
5. Camshaft bearing cap
6. Camshaft front bearing cap
7. O-ring
8. OCV (Oil Control Valve) adapter

Cylinder Head Cover Repair procedures
Removal 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Remove the air clean hose. (Refer to Intake and Exhaust System - "Ari Cleaner") 4. Disconnect the ...

CVVT & Camshaft Description and Operation
Description Continuous Variable Valve Timing (CVVT) system advances or retards the valve timing of the intake and exhaust valve in accordance with the ECM control signal which is calculated by ...
