Hyundai Sonata: Roof Trim / Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Roof Trim / Components and Components Location

Components

[General Type]

1. Roof trim
2. Sunvisor [LH]

3. Sunvisor [RH]
4. Assist handle bracket

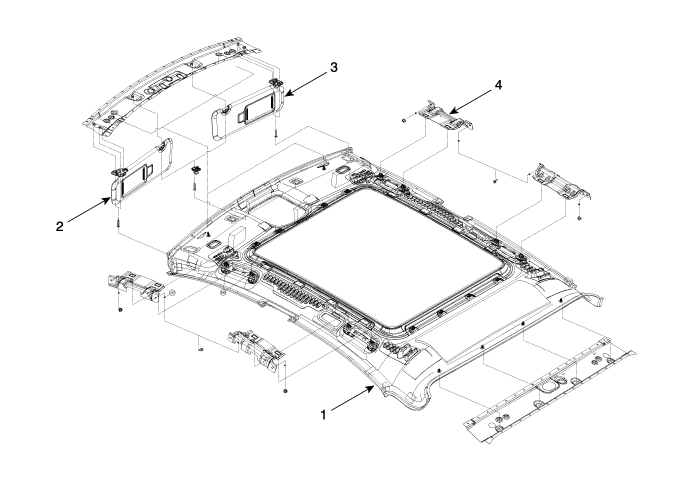

[Panorama Sunroof Type]

1. Roof trim
2. Sunvisor [LH]

3. Sunvisor [RH]
4. Assist handle bracket
