Hyundai Sonata: Roof Trim / Sunvisor Components and Components Location

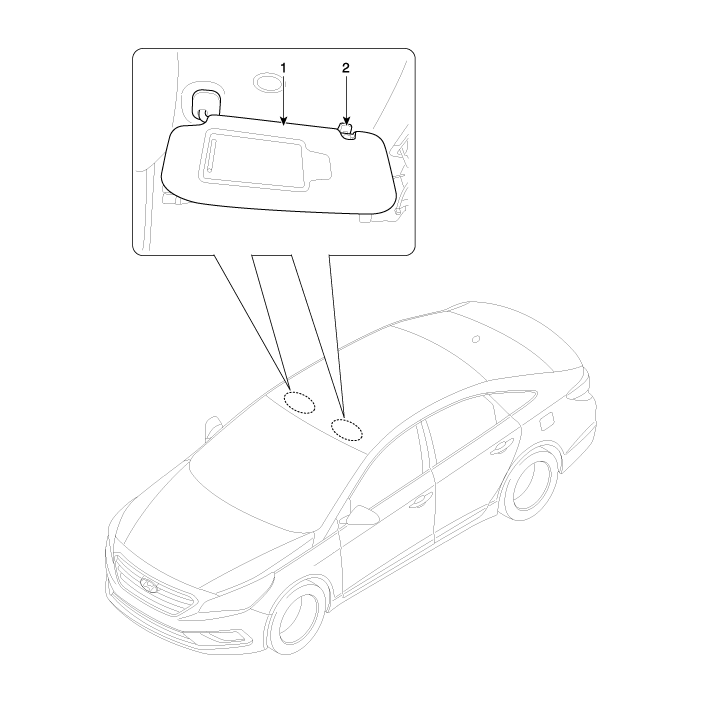

| Component Location |
| 1. Sunvisor | 2. Retainer |
Components and Components Location
Components
[General Type]
1. Roof trim2. Sunvisor [LH]3. Sunvisor [RH]4. Assist handle bracket
[Panorama Sunroof Type]
1. Roof trim2. Sunvisor [LH]3. Sunvisor [RH]4. Assist handle brac ...
Sunvisor Repair procedures
Replacement
•
When prying with a flat-tip screwdriver, wrap it with
protective tape, and apply protective tape around the related parts, to
prevent damage.
•
...
