| Components |

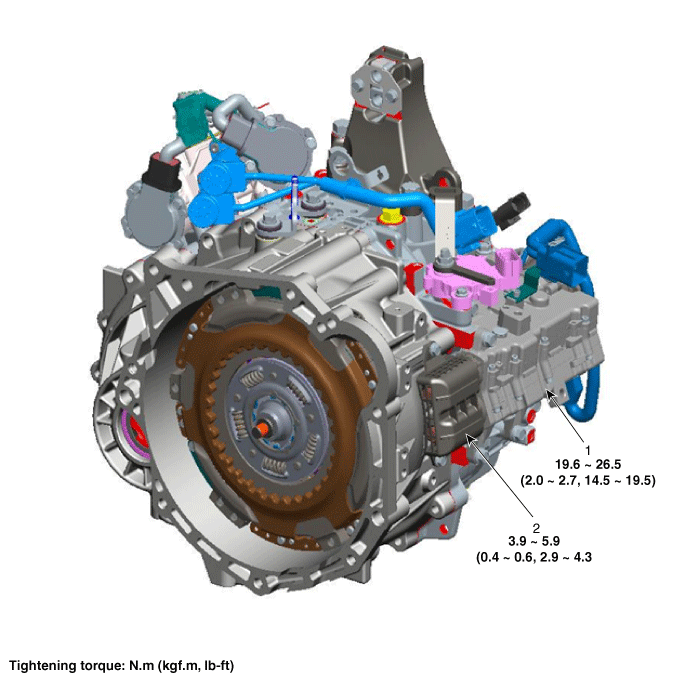

| 1. Clutch actuator assembly | 2. Fork cover |
DCT Control Module (TCM) Repair proceduresInspection Transmission Control Module (TCM) Inspection Procedure 1. Inspecting TCM ground circuit: Measure the resistance between the TCM and chassis ground...
Circuit Diagram • COM signal - When controlling the voltage generated, the ECM sends the target voltage data to the alternator via a PWM signal.(High voltage: 4V or higher, low voltage: 2V or lower) • FR signal - The transistor activation signal inside the alternator monitors the voltage generated by the alternator to control the excitation current before it sends the FR signal to the ECM...
Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Remove the intake manifold (Refer to “Intake And Exhaust System” in EM group). 3. Disconnect the injector connector (A). 4. Remove the installation bolt (B), and then remove the sensor from the cylinder block...
