Hyundai Sonata LF: Body (Interior and Exterior) / Trunk Lid
Repair procedures

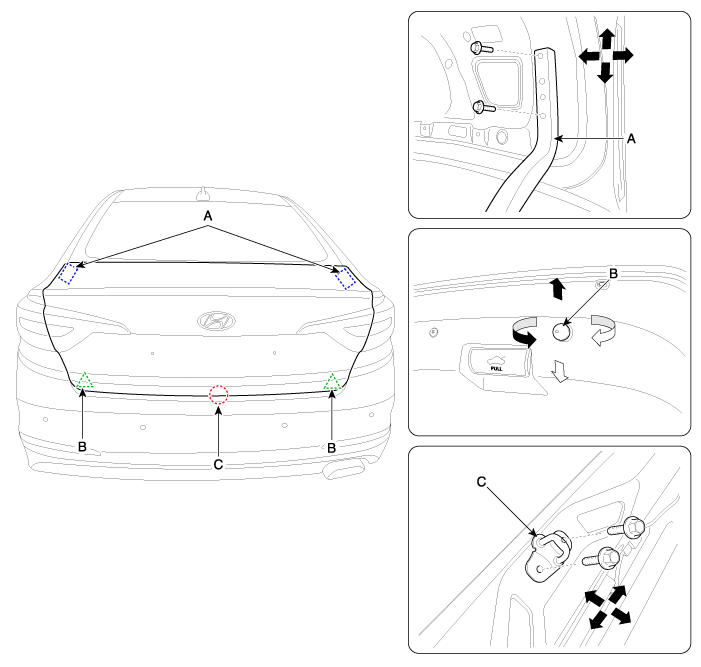

| 1. |
After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up or down, or right or left. |
| 2. |
Adjust the trunk lid height by turning the trunk lid overslam bumpers (B). |
| 3. |
After loosening the trunk lid striker (C) mounting bolts,
adjust the trunk lid striker by moving it up or down, or right or left.
|

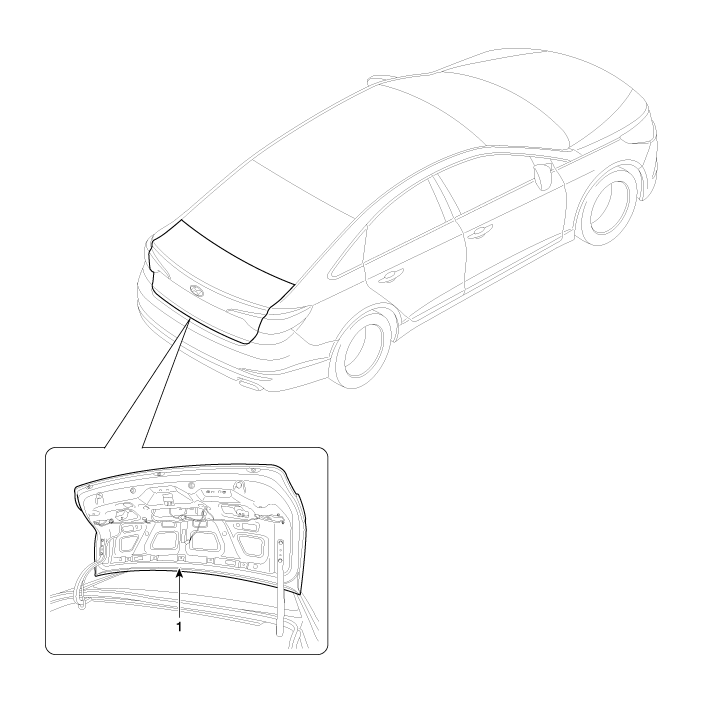

Trunk Lid Assembly Components and Components Location
Trunk Lid Assembly Repair procedures
| • |
Wear gloves to protect hands from injury. |
|
| • |
When removing and installing the trunk lid, an assistant is necessary. |
|
| 1. |
Remove the trunk lid trim.
(Refer to Trunk Lid - "Trunk Lid Trim") |
| 2. |

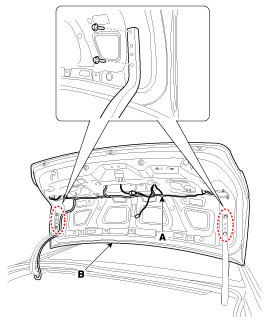

Disconnect the connectors and trunk lid wiring harness (A). |
| 3. |
After loosening the mounting bolts, then remove the trunk lid assembly (B).
Tightening torque :
6.9 ~ 8.8 N.m (0.7 ~ 0.9 kgf.m, 5.1 ~ 6.5 lb-ft)
|
|
| 4. |
Install in the reverse order of removal.
| • |
Make sure the trunk lid locks / unlocks and opens / closes properly. |
| • |
Adjust the trunk lid alignment. |
| • |
Make sure the connectors are connected in properly. |
| • |
Replace any damaged clips. |
|
|

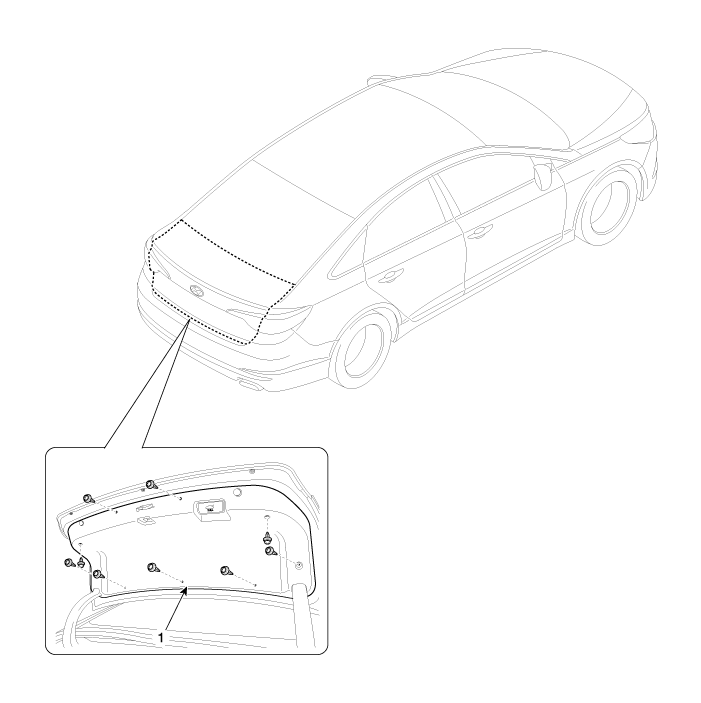

Trunk Lid Trim Components and Components Location
Trunk Lid Trim Repair procedures
| • |
Put on gloves to protect your hands. |
|
| • |
When prying with a flat-tip screwdriver or use a prying trim
tool, wrap it with protective tape, and apply protective tape around the
related parts, to prevent damage. |
| • |
Take care not to scratch the body surface. |
|
| 1. |
Raise the cover (A) using a auger.
|
| 2. |
Loosen the mounting screw and remove the trunk handle (A).
|
| 3. |
After loosening the mounting screw and clips, then remove the trunk lid trim (A).
|
| 4. |
Install in the reverse order of removal.
| • |
Replace any damaged clips. |
|
|
Trunk Lid Key Holder Repair procedures
| • |
Put on gloves to protect your hands. |
|
| • |
When prying with a flat-tip screwdriver or use a prying trim
tool, wrap it with protective tape, and apply protective tape around the
related parts, to prevent damage. |
| • |
Take care not to scratch the body surface. |
|
| 1. |
Remove the trunk lid trim.
(Refer to Trunk Lid - "Trunk Lid Trim") |
| 2. |
Loosen the trunk lid key holder mounting nuts. |
| 3. |
Remove the trunk lid key holder (B) and disconnect the trunk lid key holder cable (A).
Tightening torque :
6.9 ~ 8.8 N.m (0.7 ~ 0.9 kgf.m, 5.1 ~ 6.5 lb-ft)
|
|
| 4. |
Install in the reverse order of removal.
| • |
Make sure the trunk lid locks / unlocks and opens / closes properly. |
| • |
Replace any damaged clips. |
|
|

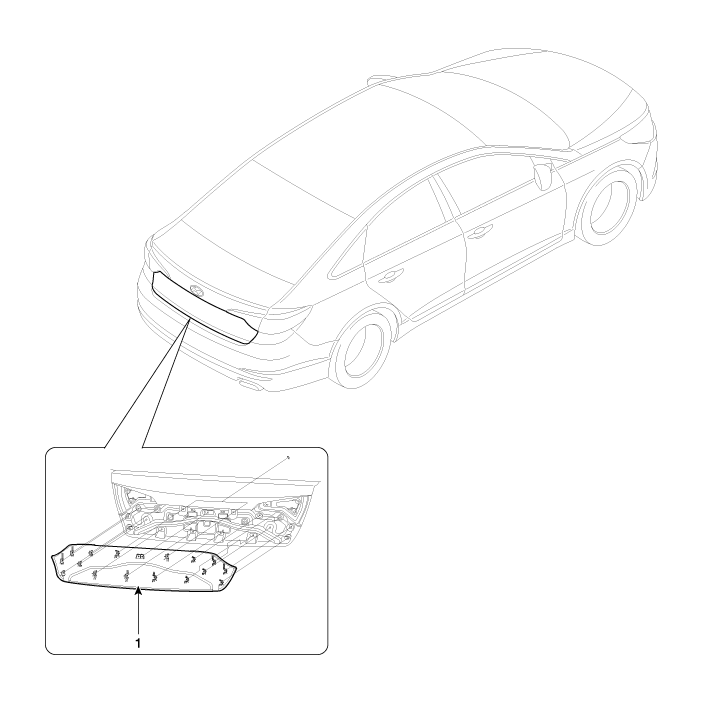

Trunk Lid Back Panel Components and Components Location
Trunk Lid Back Panel Repair procedures
| • |
Put on gloves to protect your hands. |
|
| • |
When prying with a flat-tip screwdriver or use a prying trim
tool, wrap it with protective tape, and apply protective tape around the
related parts, to prevent damage. |
| • |
Take care not to scratch the body surface. |
|
| 1. |
Remove the trunk lid trim.
(Refer to Trunk Lid - "Trunk Lid Trim") |
| 2. |
Remove the inside rear combination lamp.
(Refer to Body Electrical System - "Rear combination lamp") |
| 3. |
Loosen the mounting nut, remove the trunk lid panel (A).
|
| 4. |
Install in the reverse order of removal.
| • |
Make sure the connector are connected in properly. |
| • |
Replace any damaged clips. |
|
|
Trunk Lid Weatherstrip Repair procedures
| 1. |
Remove the trunk lid weatherstrip (A).
| • |
Do not apply sealant to the body. |
|
|
| 2. |
Install in the reverse order of removal.
| • |
Install the weather strip aligned with canter line (B). |
|
|
