Hyundai Sonata: Engine Control System / Camshaft Position Sensor (CMPS) Troubleshooting

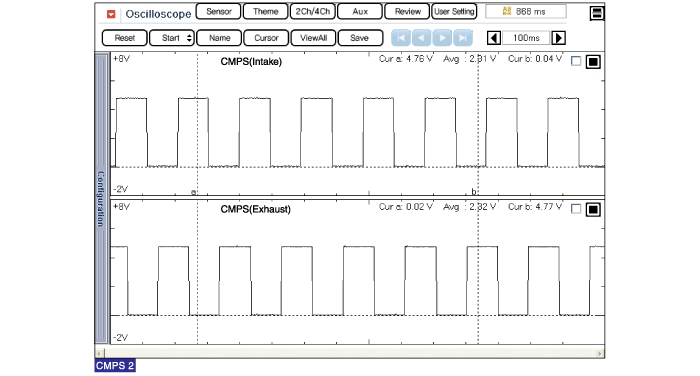

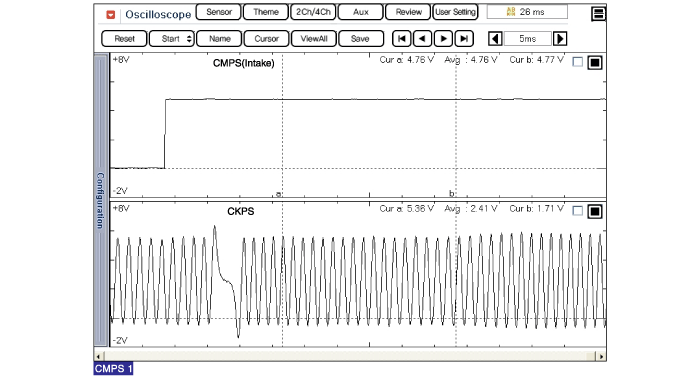

Wave Form

Camshaft Position Sensor (CMPS) Description and Operation
Description Camshaft Position Sensor (CMPS) is a hall sensor and detects the camshaft position by using a hall element. It is related with Crankshaft Position Sensor (CKPS) and detects the pisto ...

Camshaft Position Sensor (CMPS) Schematic Diagrams
Circuit Diagram ...
