Hyundai Sonata LF 2014-2019 Service Manual / Brake System / Brake System / Brake Pedal Components and Components Location

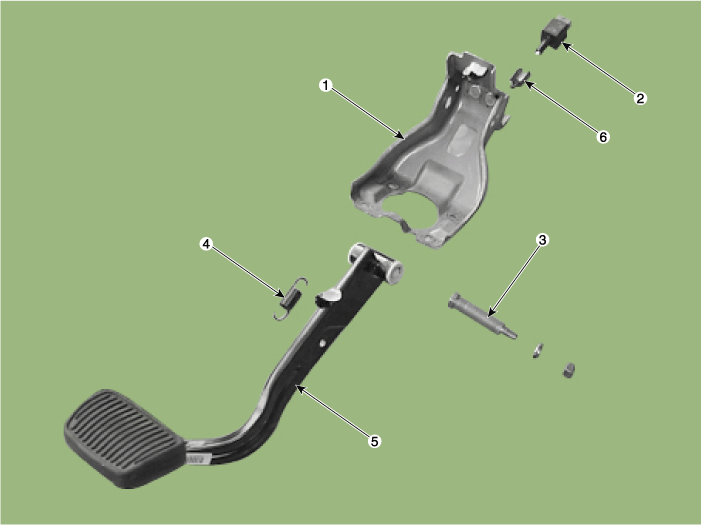

Components

1. Brake member assembly
2. Stop lamp switch
3. Bolt
4. Return spring
5. Brake pedal assembly
6. Locking plate

    Brake Line Repair procedures

    Removal 1. Disconnect the brake fiuid level switch connector, and remove the reservoir cap. 2. Remove the brake fluid from the master cylinder reservior with a syringe...

    Brake Pedal Repair procedures

    Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad") 3...
