Hyundai Sonata LF 2014-2019 Service Manual / Brake System / Brake System / Brake Booster Components and Components Location

Components

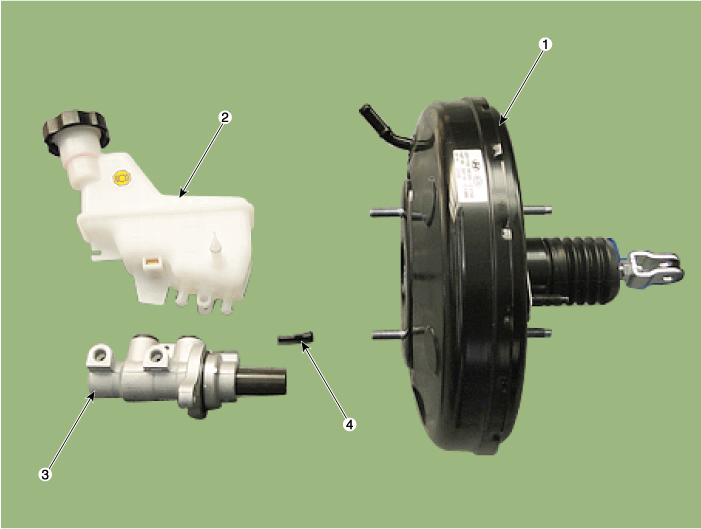

1. Brake booster
2. Reservoir
3. Master cylinder
4. Pin

[T-GDI ENGINE ONLY]

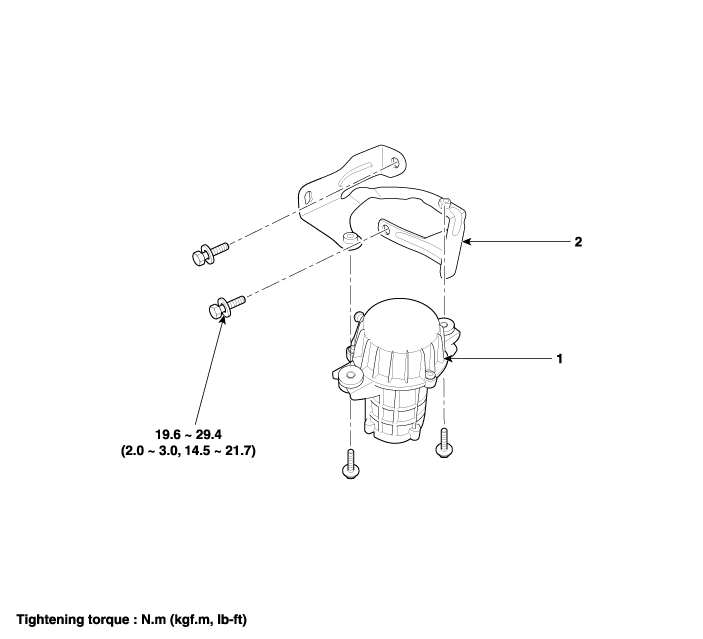

1. Vacuum pump
2. Bracket

    Repair procedures

    Operation and Leakage Check Check all of the following items: ComponentProcedureBrake Booster (A)Check brake operation by applying the brakes during a test drive...

    Brake Booster Repair procedures

    Brake Booster Operating Test For simple checking of the brake booster operation, carry out the following tests. 1. Run the engine for one or two minutes, and then stop it...
