Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / AVN System / AVN Keyboard Components and Components Location

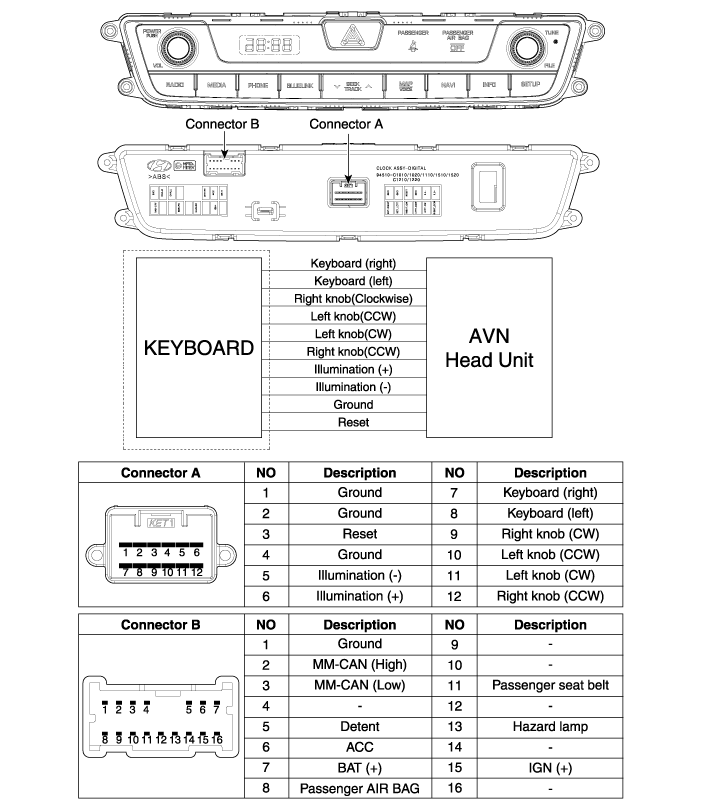

Components

    External AMP Repair procedures

    Removal 1. Disconnect the negative (-) battery terminal. 2. Open the trunk, remove the right luggage side trim. (Refer to Body - "Trunk Trim") 3...

    AVN Keyboard Repair procedures

    Removal 1. Disconnect the negative (-) battery terminal. 2. Using a screwdriver or remover, separate the center fascia panel (A). 3. Remove the center fascia panel (A) after disconnect the connector...
