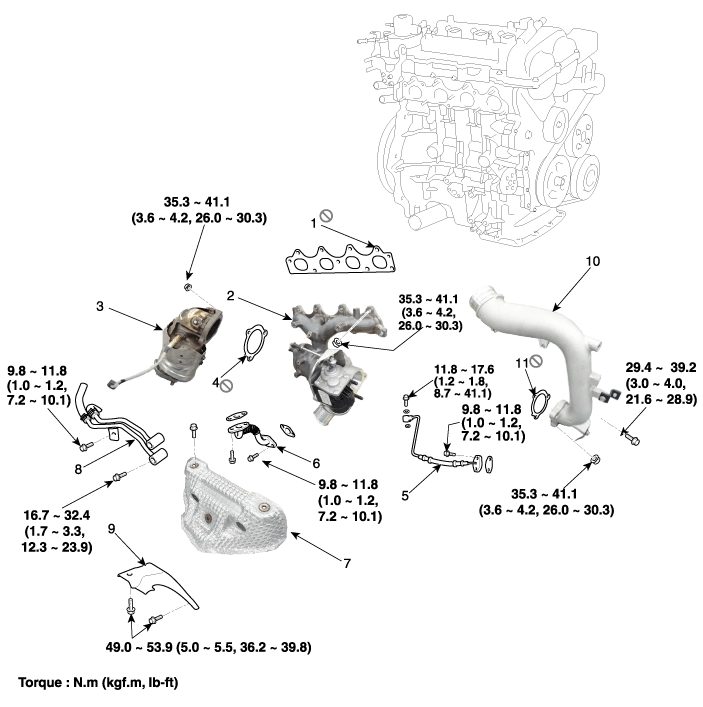

Components

1. Turbo manifold gasket
2. Turbo manifold module
3. Turbo charger coupler
4. Turbo charger coupler & gasket
5. Oil feed pipe & hose assembly
6. Oil drain pipe assembly
7. Turbo manifold module heat protector
8. Turbo charger water pipe & hose assembly
9. Turbo charger stay
10. Intake pipe
11. Intake pipe gasket

Intake Manifold Repair procedures
Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Disconnect the engine wiring connector and haness clamp and disconnect the wiring from ...

Exhaust Manifold Repair procedures
Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Remove the air cleaner assembly. (Intake And Exhaust System - "Air Cleaner") 4. Re ...
