Hyundai Sonata: Audio / Audio Remote Control (Sonata Sports) Schematic Diagrams

Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Audio / Audio Remote Control (Sonata Sports) Schematic Diagrams

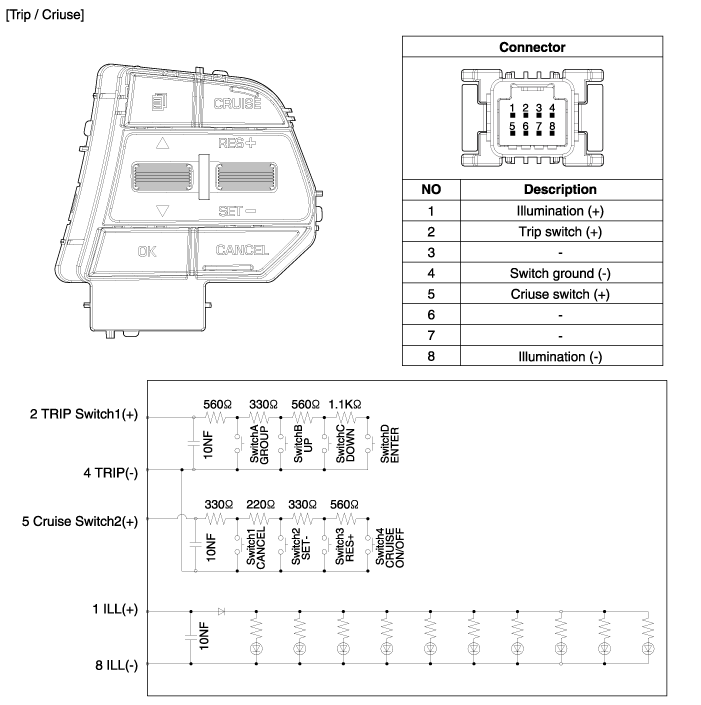

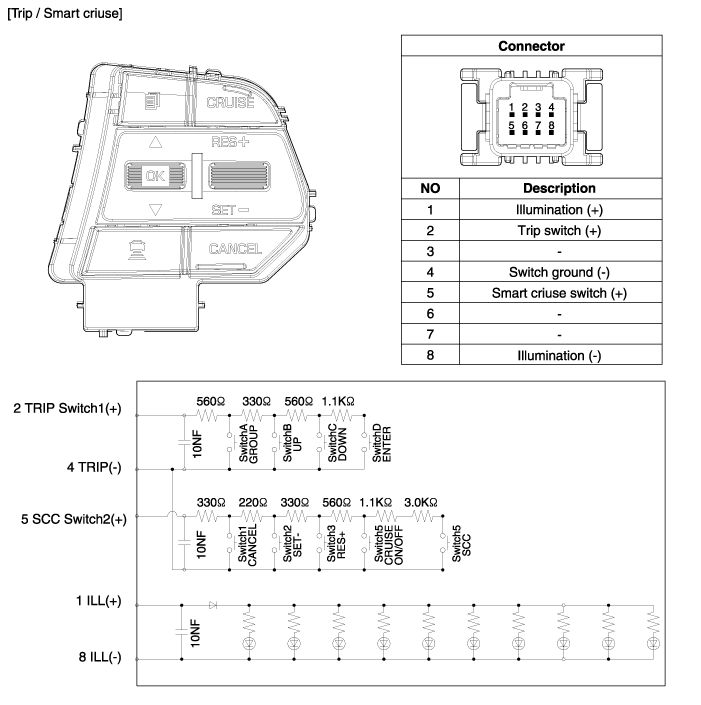

Circuit Diagram

Audio Remote Control (Sonata Sports) Components and Components Location
Components 1. Left remote control switch (Audio + Hands free)2. Right remote control switch (Cruise+Trip Computer)3. Paddle shift switch (Down)4. Paddle shift switch (Up) ...

Audio Remote Control (Sonata Sports) Repair procedures
Inspection 1. Check for resistance between terminals in each switch position (LH). [LH : Audio + Hands free] SwitchConnector TerminalResistance(±5%)SEEK Up4-5430 ?SEEK Down1.11 k?MUTE3.11 k?Vol ...
