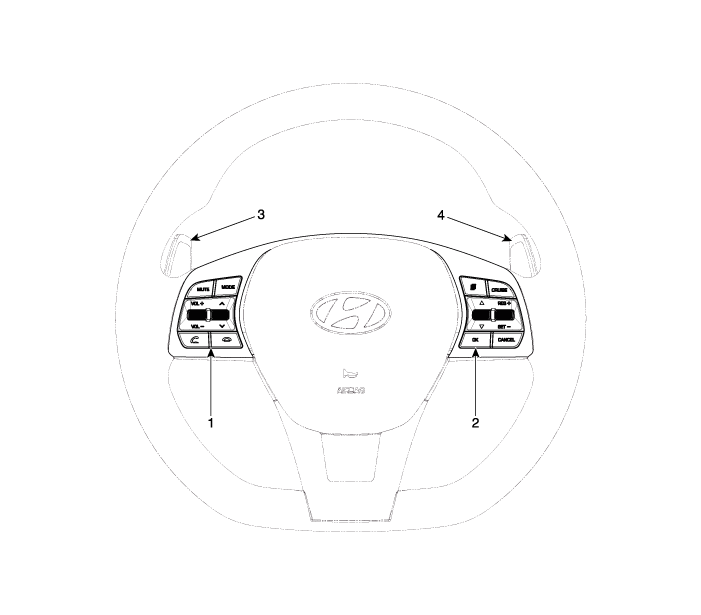

Hyundai Sonata LF: Audio / Audio Remote Control (Sonata Sports) Components and Components Location

Audio Remote Control Repair procedures

Inspection 1. Check for resistance between terminals in each switch position (LH). [LH : Audio + Hands free] SwitchConnector TerminalResistance(±5%)SEEK Up2-5430 ?SEEK Down1...

Audio Remote Control (Sonata Sports) Schematic Diagrams

C..
