Hyundai Sonata: Advanced Smart Cruise Control System / Advanced Smart Cruise Control (ASCC) Switch Schematic Diagrams

Hyundai Sonata LF 2014-2019 Service Manual / Engine Electrical System / Advanced Smart Cruise Control System / Advanced Smart Cruise Control (ASCC) Switch Schematic Diagrams

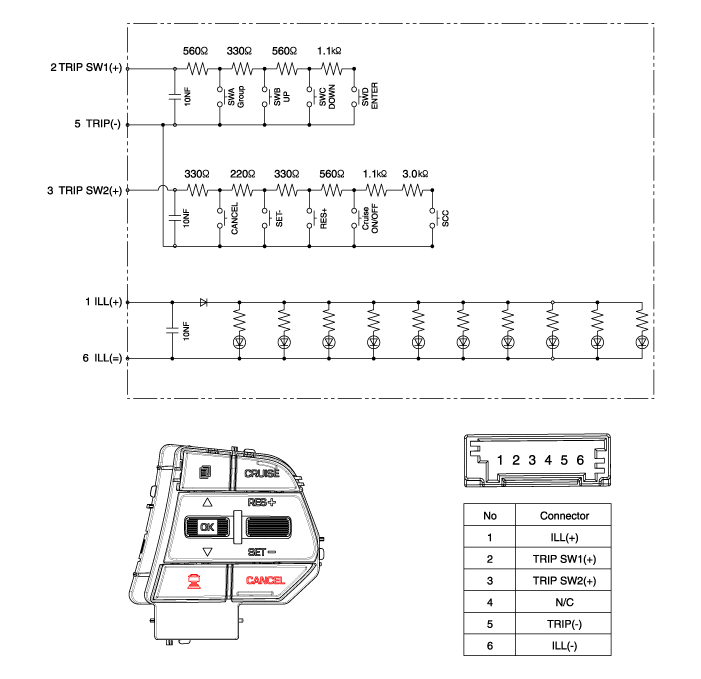

Circuit Diagram

Advanced Smart Cruise Control (ASCC) Switch Components and Components Location
Components 1. SET - switch2. RES + switch3. ASCC switch4. CANCEL switch5. CRUISE switch ...

Advanced Smart Cruise Control (ASCC) Switch Repair procedures
Inspection [Measuring Resistance] 1. Disconnect the smart cruise control switch connector from the control switch. 2. Measure resistance between terminals on the control switch when each fu ...
