Hyundai Sonata LF: Interior Trim / Door Scuff Trim Components and Components Location

Components and Components Location

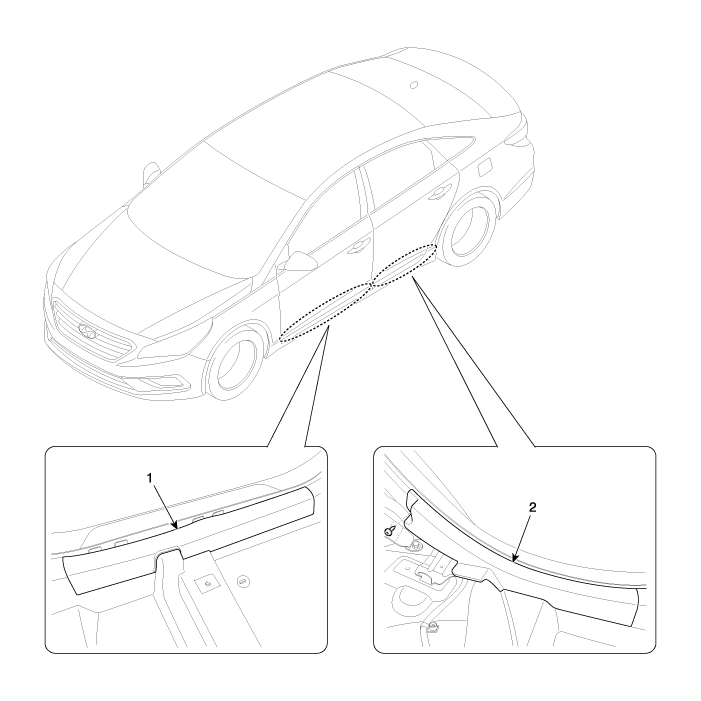

Components 1. Cowl side trim2. Front pillar trim3. Front door scuff trim4. Front door step trim5. Center pillar upper trim6. Center pillar lower trim 7...

Door Scuff Trim Repair procedures

Replacement [Front Door Scuff Trim]     • Put on gloves to protect your hands.     • When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage...
