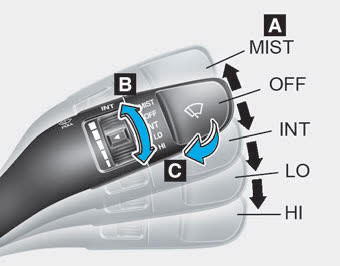

A : Wiper speed control
· MIST – Single wipe
· OFF – Off
· INT – Intermittent wipe
· LO – Low wiper speed
· HI – High wiper speed
B : Intermittent control wipe time adjustment
C :Wash with brief wipes
Hyundai Sonata LF 2014-2019 Service Manual: Schematic Diagrams
Schematic
[EPB Type]
[General Type]
Terminal Funtion
[EPB Type]
PIN NODesciptionCurrentmaxmin1Voltage supply for pump motor39A 10A 2RR EPB motor power30A - 3RR EPB motor ground30A - 4- - - 5Local CAN High 30mA 20mA 6Electric ...
Hyundai Sonata LF 2014-2019 Service Manual: Starter Relay Repair procedures
Inspection
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the fuse box cover.
3.
Remove the starter relay (A).
4.
Using an ohmmeter, check that there is continuity between each terminal.
TerminalContinuity30 - 87NO85 - 86YES
5.
Apply 12V ...
