Hub nut tightening sequence

Tighten the hub nuts as follows.

Tightening torque:

88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)

When using an impact gun, final tightening torque should be checked using a torque wrench.

Run out inspection

1.	Jack up the vehicle.

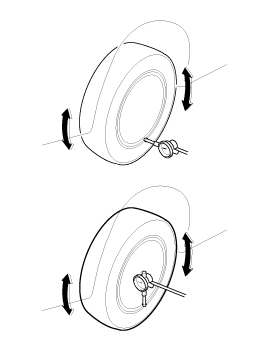

Measure the wheel Run-out by using a dial indicator as illustration below.

Run-out		Aluminum
Radial mm(in.)		Below 0.3(0.012)
Lateral mm(in.)		Below 0.3(0.012)

3.	If measured value exceeds the standard value, replace the wheel.

Tire Repair procedures

• Using tires and wheel other than the recommended sizes could cause unusual handling characteristics and poor vehicle control, resulting in a serious accident. Tir ...

Alignment Repair procedures

Front Wheel Alignment When using a commercially available computerized wheel alignment equipment to inspect the front wheel alignment, always position the vehicle on a lev ...
