Hyundai Sonata LF: Intake And Exhaust System / Turbo Charger Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Engine Mechanical System / Intake And Exhaust System / Turbo Charger Components and Components Location

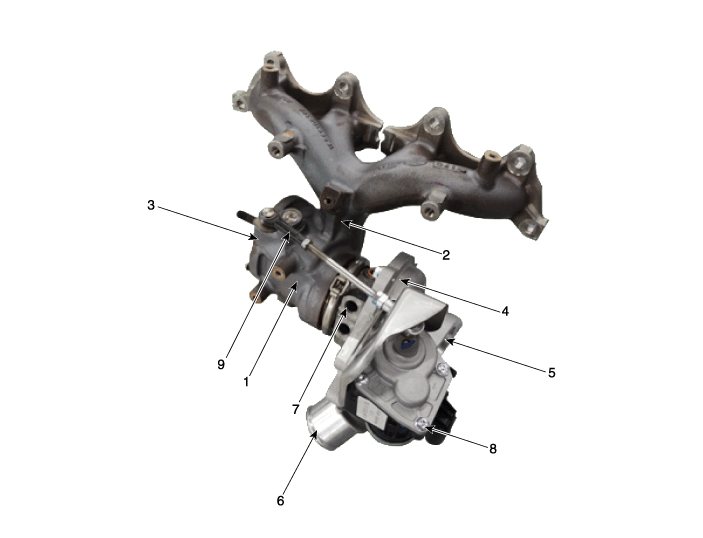

Components

1. Turbine housing
2. Turbine inlet
3. Turbine outlet
4. Compressor housing
5. Compressor inlet
6. Compressor outlet
7. Center housing
8. Actuator
9. Actuator rod

    Intercooler Repair procedures

    Removal and Installation 1. Disconnect the battery negative terminal. 2. Remove the intercooler inlet hoses & pipe (A). Tightening torque Bolt : 19...

    Turbo Charger Repair procedures

    On-vehicle Inspection Turbocharger Diagnostic Flow If any problem related with turbocharger, such as lack of engine power, poor acceleration, abnormal engine noise or oil leaks, may occur, check the turbocharger according to the procedure as follows...
