Hyundai Sonata LF: Tire Pressure Monitoring System / TPMS Receiver Repair procedures

Hyundai Sonata LF 2014-2019 Service Manual / Suspension System / Tire Pressure Monitoring System / TPMS Receiver Repair procedures

Replacement
1.
Disconnect the negative (-) battery cable.
2.
Remove the glove box.
(Refer to Body - "Crash Pad")
3.
Remove faulty part and fit bracket assembly to new part.

4.
Secure new part to vehicle and fit connector.
5.
Re-connect battery and turn Ignition on.
6.
After replacing the receiver, learn by using self-diagnosis device(GDS).

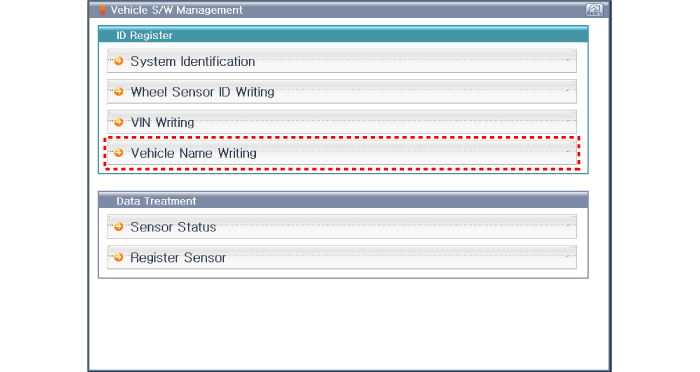

[Vehicle name input initialization]

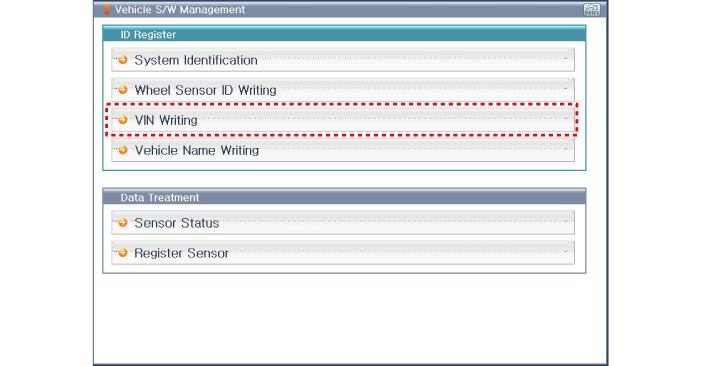

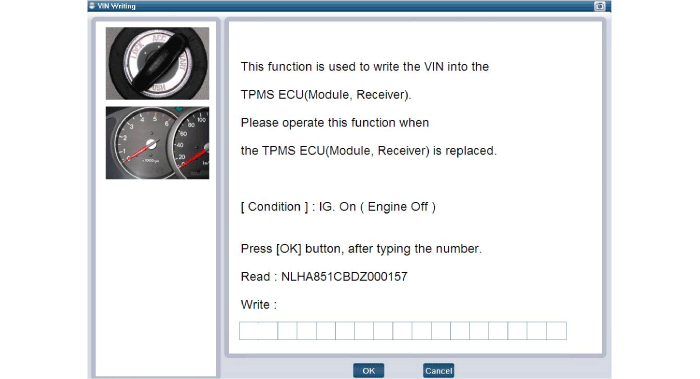

[VIN input initialization]

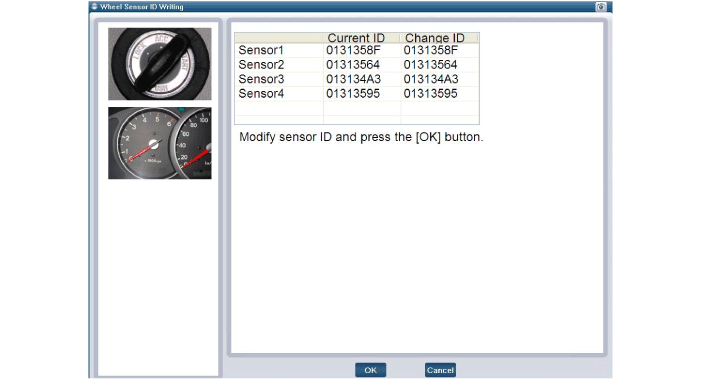

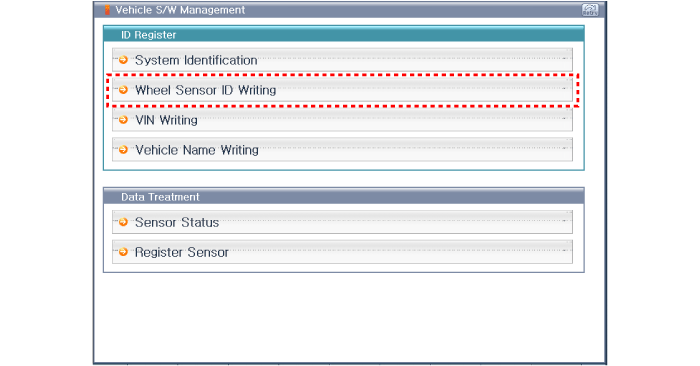

[Wheel Sensor ID Writing (Wireless) initialization]
