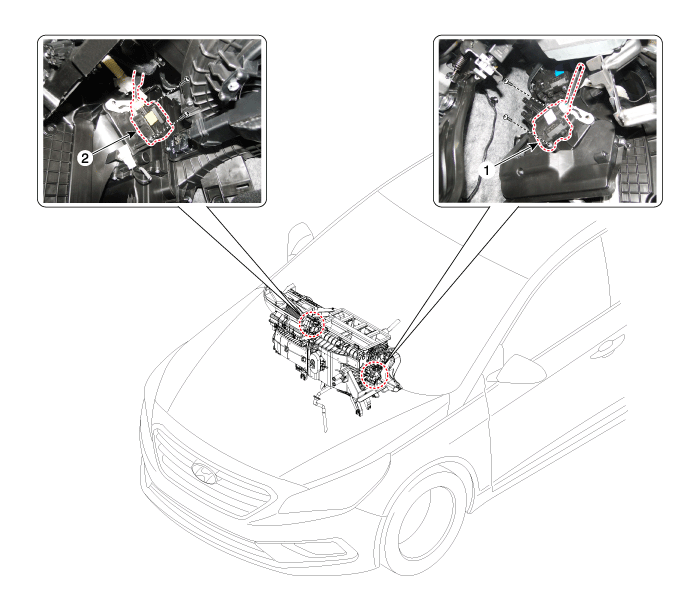

Components Location

1. Temperature control actuator [LH]
2. Temperature control actuator [RH]

Evaporator Core Repair procedures
Replacement 1. Disconnect the negative (-) battery terminal. 2. After loosening the bolts remove the main crash pad and cowl cross bar assembly together. (Refer to Heater -"Heater Unit") ...

Temperature Control Actuator Description and Operation
Description The temperature control actuator is located at the heater unit. It regulates the temperature by the procedure as follows. The signal from the control unit adjusts the position of the ...
