Hyundai Sonata LF 2014-2019 Service Manual / Emission Control System / General Information / Components and Components Location

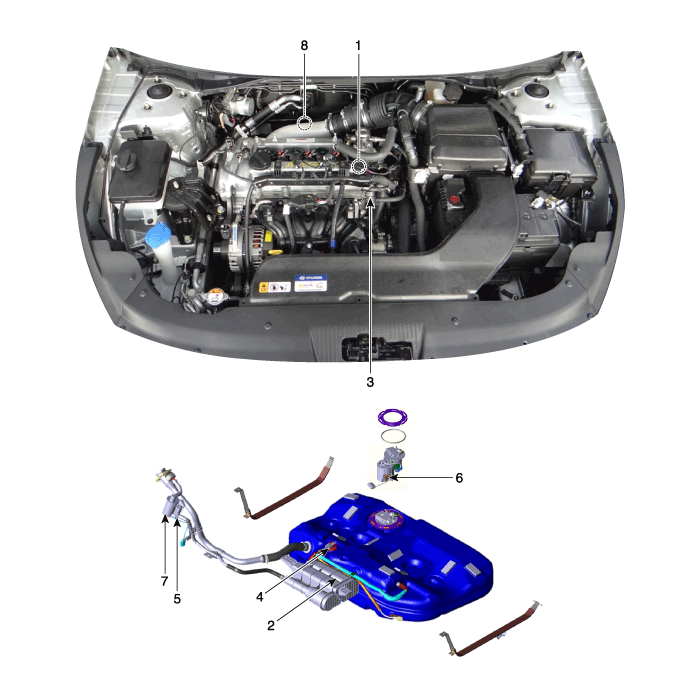

| Components Location |
| 1. PCV Valve 2. Canister 3. Purge Control Solenoid Valve (PCSV) 4. Fuel Tank Pressure Sensor (FTPS) | 5. Canister Close Valve (CCV) 6. Fuel Level Sender (FLS) 7. Fuel Tank Air Filter 8. Catalytic Converter (WCC+UCC) |
| 1. PCV Valve | 2. Canister |
|
|
| 3. Purge Control Solenoid Valve (PCSV) | 4. Fuel Tank Pressure Sensor (FTPS) |
|
|
| 6. Fuel Level Sender (FLS) | 5. Canister Close Valve (CCV) 7. Fuel Tank Air Filter |
|
|
| 8. Catalytic Converter (WCC) | 8. Catalytic Converter (UCC) |
|
|
