Hyundai Sonata: Brake System / Stop Lamp Switch Schematic Diagrams

Hyundai Sonata LF 2014-2019 Service Manual / Brake System / Brake System / Stop Lamp Switch Schematic Diagrams

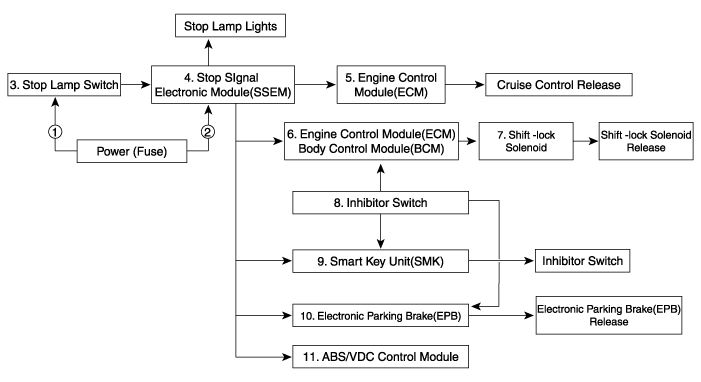

Schematic Diagram

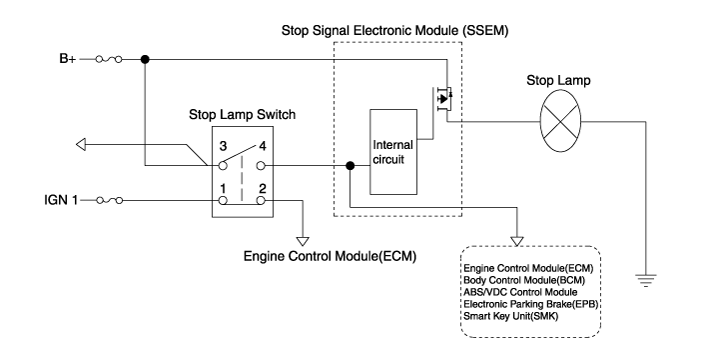

System Circuit Diagram

Terminal function

Teminal
Description
1
IGN1
2
Engine Control Module (ECM)
3
B+
4
Stop Lmap
