Hyundai Sonata: Electric Power Steering / Steering Gear box Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Steering System / Electric Power Steering / Steering Gear box Components and Components Location

Components

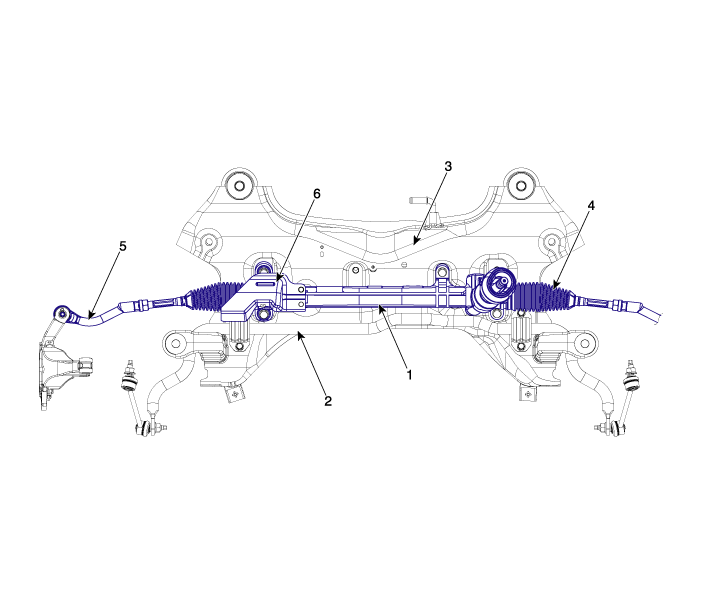

[C-MDPS]

1. Steering gear box
2. Stabilizer bar
3. Sub frame
4. Bellows
5. Tie rod end
6. Heat protect

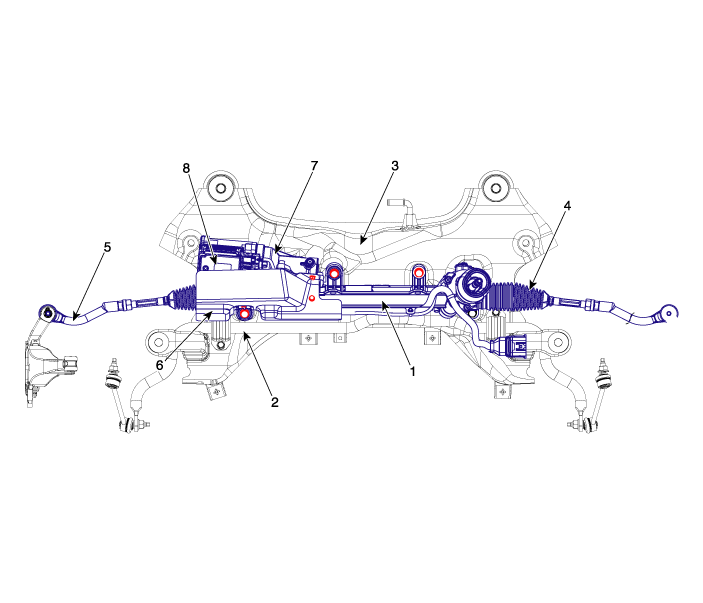

[R-MDPS]

1. Steering gaer box
2. Stabilizer bar
3. Sub frame
4. Bellows
5. Tie rod end
6. Heat protect
7. Motor
8. ECU
