Hyundai Sonata LF 2014-2019 Service Manual / Engine Electrical System / Starting System / Starter Components and Components Location

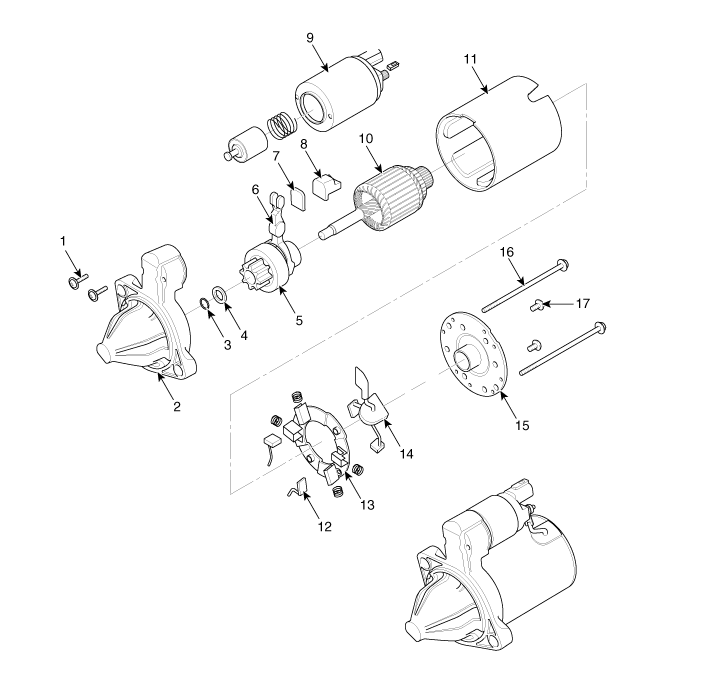

Components

1. Screw
2. Front housing
3. Stop ring
4. Stopper
5. Overrunning clutch
6. Lever
7. Lever plate
8. Lever packing
9. Magnet switch assembly
10. Armature assembly
11. Yoke assembly
12. Brush (-)
13. Brush holder
14. Brush (+)
15. Rear bracket
16. Through bolt
17. Screw

    Starter Specifications

    S..

    Starter Schematic Diagrams

    C..
