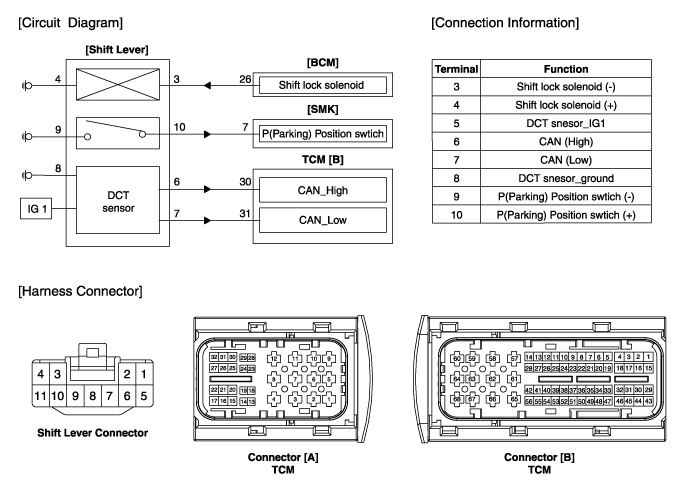

| Circuit Diagram |

Shift Lever Components and Components LocationComponents (1) 1. Shift lever knob2. Shift lever assembly3. Shift cable4. Shift cable retainer Components (2) 1. Shift lever assembly2. P position switch3...
Shift Lever Repair proceduresRemoval 1. Disconnect a boots from the console upper cover. 2. Pull the knob (A) in the direction of "F" and remove the knob. 3. Remove the floor console assembly...
Schematic [EPB Type] [General Type] Terminal Funtion [EPB Type] PIN NODesciptionCurrentmaxmin1Voltage supply for pump motor39A 10A 2RR EPB motor power30A - 3RR EPB motor ground30A - 4- - - 5Local CAN High 30mA 20mA 6Electric parking brake signal 1 20mA - 7Electric parking brake signal 220mA - 8Electric parking brake signal 320mA - 9Electric parking brake signal 420mA - 10- - - 11- - - 12RL EPB motor ground30A - 13RL EPB motor power30A - 14Ground for solenoid valves and ECU30A 10A 15- - - 16ESS200mA 100mA 17FR Wheel speed sensor signal16...
Removal 1. Remove the fuel pump. (Refer to Fuel Delivery System - "Fuel Pump") 2. Disconnect the fuel sender connector (A). 3. Remove the fuel sender (A) after releasing the fix hook. Installation 1. Install in the reverse order of removal...
