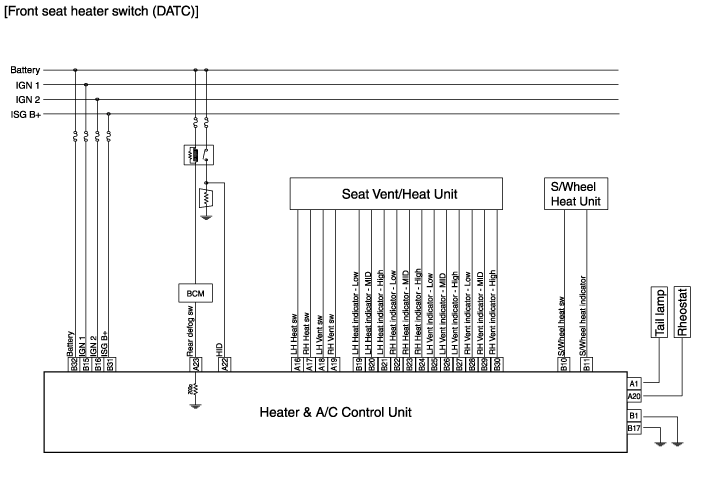

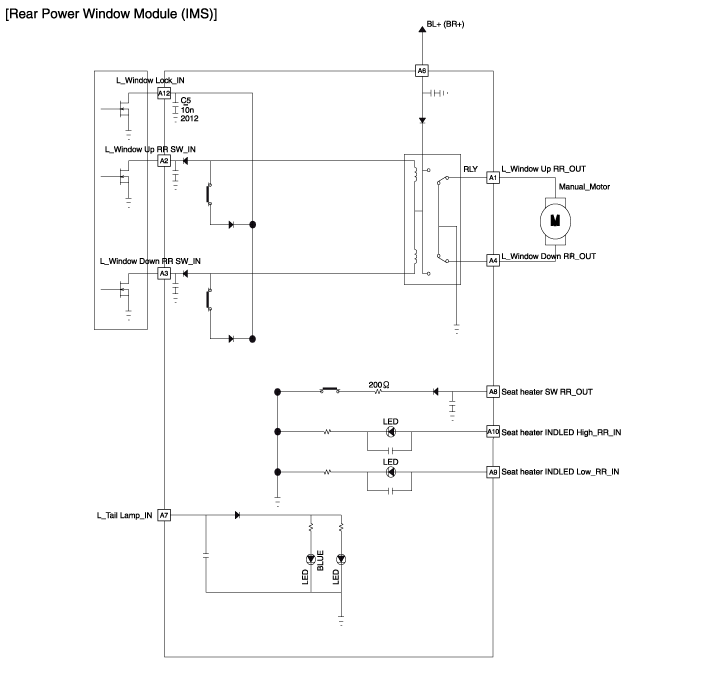

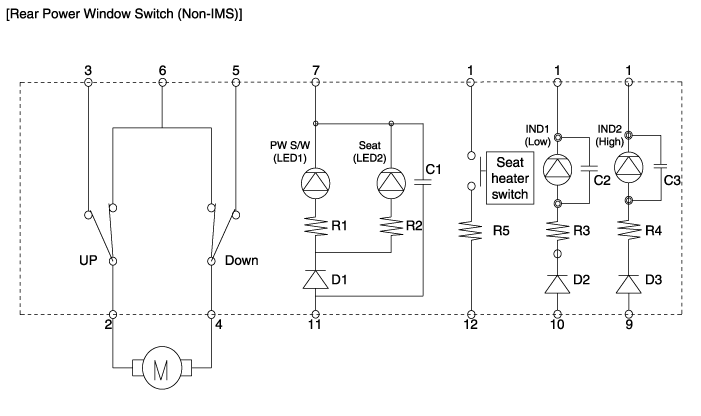

Hyundai Sonata LF: Seat Electrical / Seat Heater Switch Schematic Diagrams

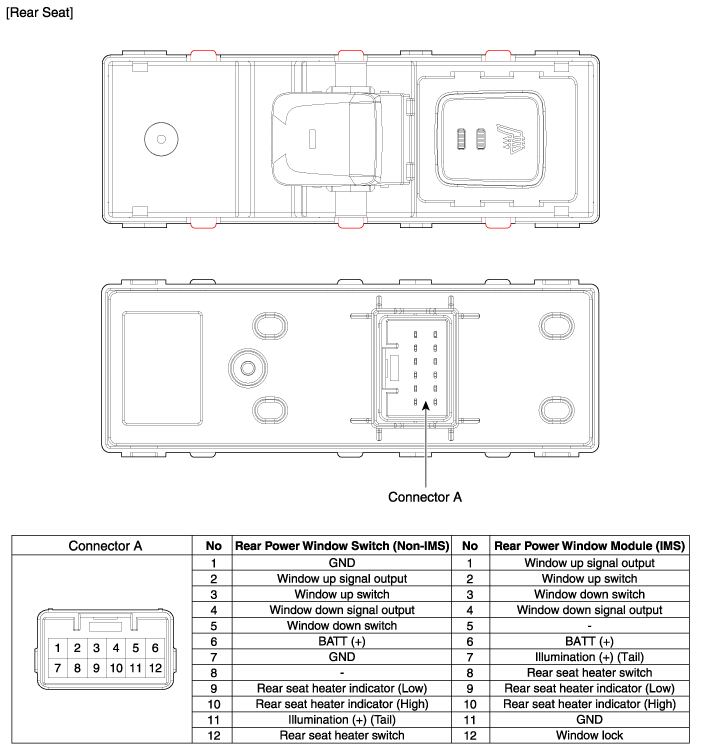

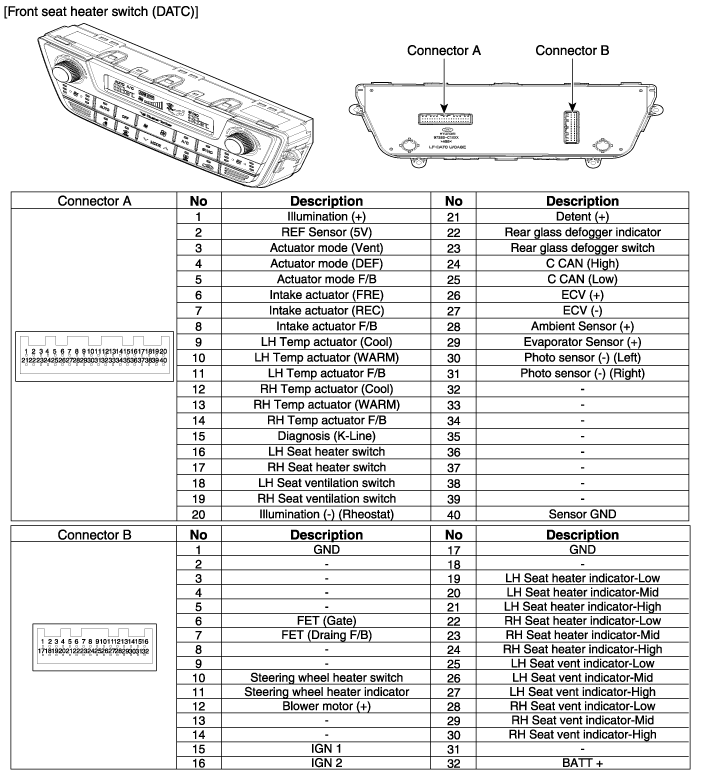

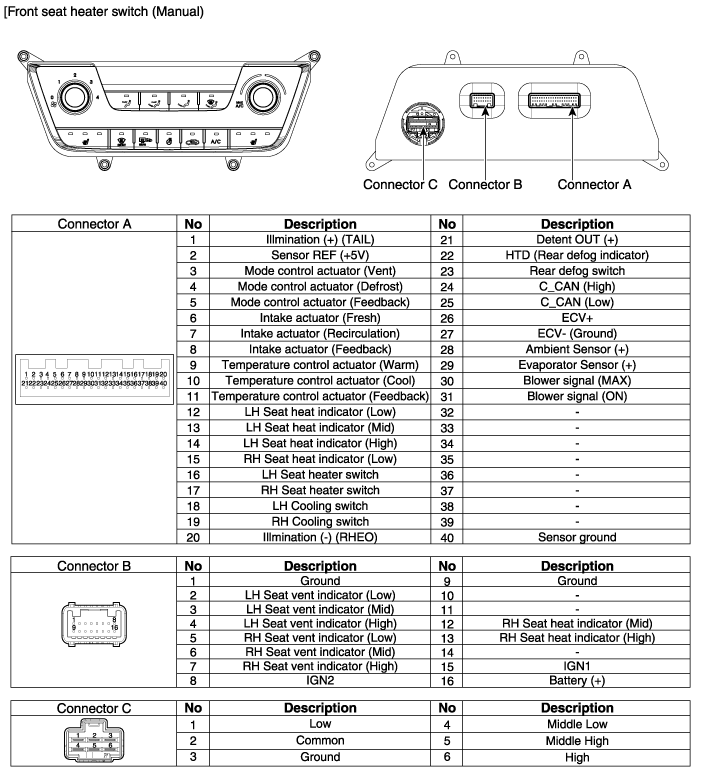

Seat Heater Switch Components and Components Location

C..

Seat Heater Switch Repair procedures

Removal [Front Seat] 1. Disconnect the negative (-) battery terminal. 2. Remove the heater and A/C control unit. (Refer to Heating, Ventilation and Air Conditioning - "Controller") [Rear Seat] 1...
