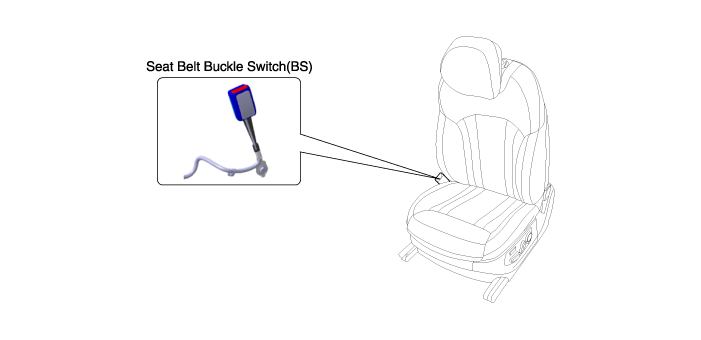

Hyundai Sonata LF: SRSCM / Seat Belt Buckle Switch (BS) Components and Components Location

Seat Belt Buckle Switch (BS) Description and Operation

Description The SRSCM shall monitor the status of the driver and front passenger seat belt buckle. The SRSCM provides one pin each for the driver and front passenger seat belt buckle status input...

Seat Belt Buckle Switch (BS) Repair procedures

Removal 1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2. Remove the front seat assembly...

Other information:

Hyundai Sonata LF 2014-2019 Service Manual: Under Body Body Repair

Projected Dimensions * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Actual Measurement Dimensions * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Front side member tooling hole (O25)Side cover mounting hole (O9)Front sub frame mounting boltCenter floor side member tooling hole (O11)Center floor side member tooling hole (O16)Floor under cover mounting hole (O6...

Hyundai Sonata LF 2014-2019 Service Manual: Injector Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the injector connector. 3. Measure resistance between the injector terminals 1 and 2. 4. Check that the resistance is within the specification. Specification: Refer to “Specification” Removal     In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel...
