Hyundai Sonata: Rear Seat / Rear Seat Assembly Repair procedures

Replacement
[Rear seat cushion assembly]
1.

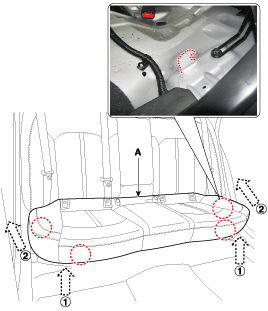

Remove the rear seat cushion assembly (A).


?Rear seat cushion separation method
1.
Remove the rear seat cushion by pulling upward.
2.
Remove the rear seat cushion by pulling upwards while pushing rearward.
2.
Disconnect the heater cushion connector (A).
[LH]

[RH]

3.
Install in the reverse order of removal.

Make sure the connector is connected properly.
[Rear seat back assembly]
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.
After loosening the mounting bolts, then remove the side back cover (A).

3.
After loosening the mounting bolts, then remove the rear seat belt buckle [RH] (A).

4.

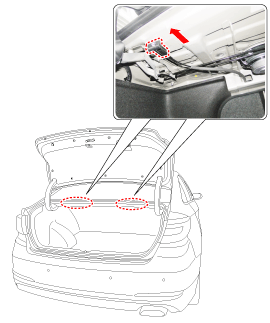

Fold the rear seat back assembly (A) by pulling the folding lever in the direction of the arrow.

5.

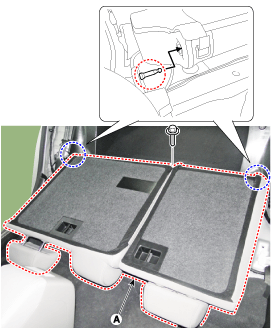

After loosening the mounting bolts, then remove the rear seat back assembly (A).

6.
Install in the reverse order of removal.
