Hyundai Sonata: Rear Seat / Rear Seat Assembly Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Assembly Components and Components Location

Component Location

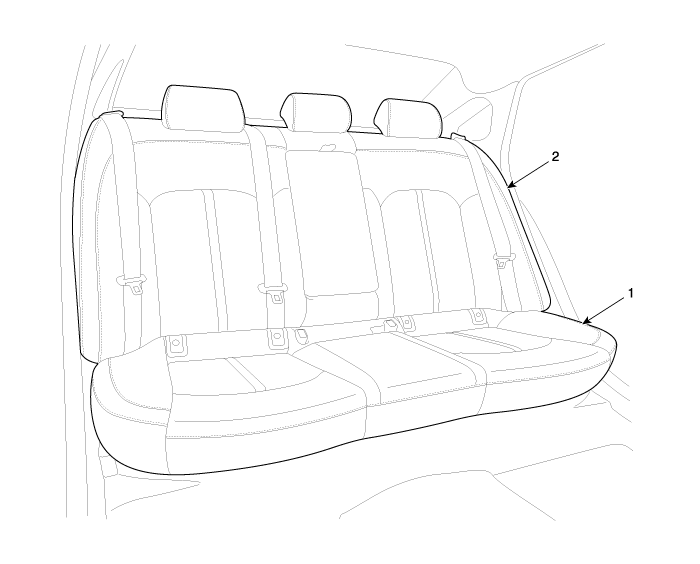

1. Rear seat cushion assembly
2. Rear seat back assembly

Components and Components Location
Components Rear sear back assembly 1. Rear seat back cover2. Rear seat back pad3. Rear seat headrest guide4. Rear seat headrest5. Rear seat back webbing guide6. Rear back armrest 7. Rear seat ba ...

Rear Seat Assembly Repair procedures
Replacement [Rear seat cushion assembly] 1. Remove the rear seat cushion assembly (A).     ?Rear seat cushion separation method 1. Remove the rear seat cushion by pulling upw ...
