Hyundai Sonata LF: Rear Seat / Components and Components Location
| Components |

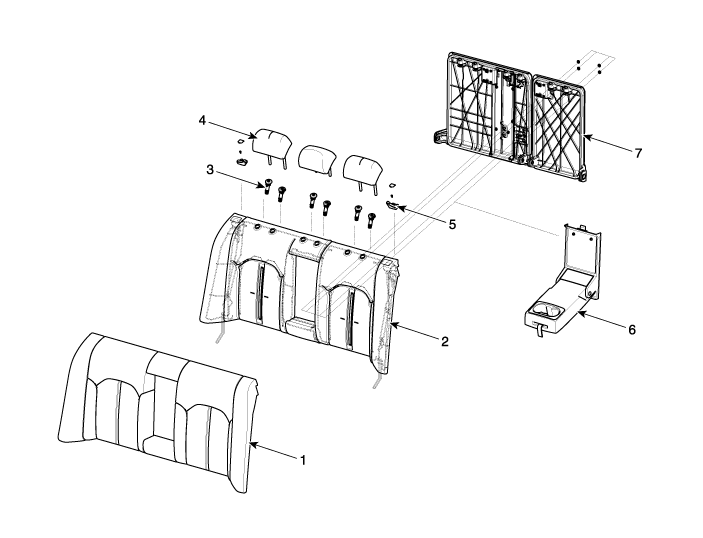

| 1. Rear seat back cover 2. Rear seat back pad 3. Rear seat headrest guide 4. Rear seat headrest | 5. Rear seat back webbing guide 6. Rear back armrest 7. Rear seat back panel assembly |

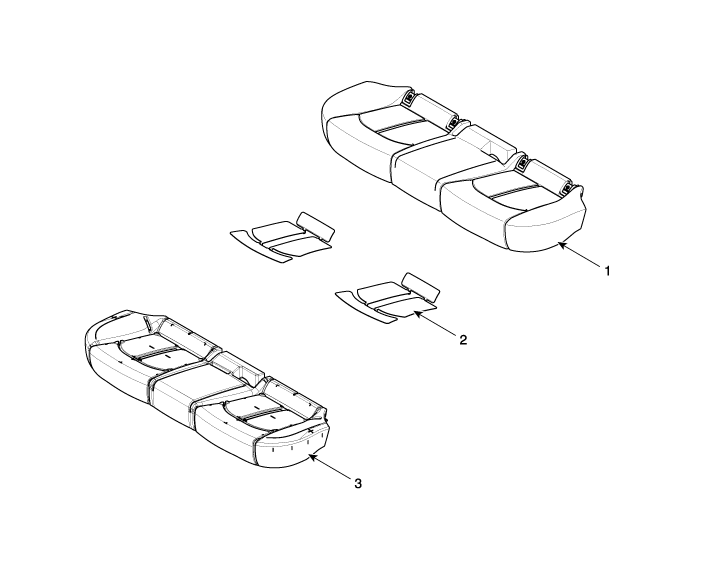

| 1. Rear seat cushion cover 2. Rear seat cushion heater | 3. Rear seat cushion pad |
