Hyundai Sonata: Crash Pad / Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Crash Pad / Components and Components Location

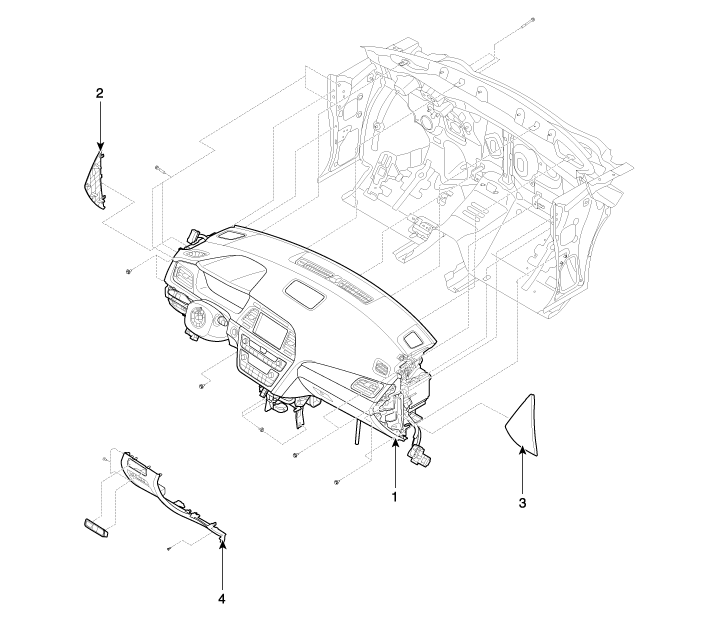

Components (1)

1. Crash pad assembly
2. Crash pad side cover [LH]

3. Crash pad side cover [RH]
4. Crash pad lower panel

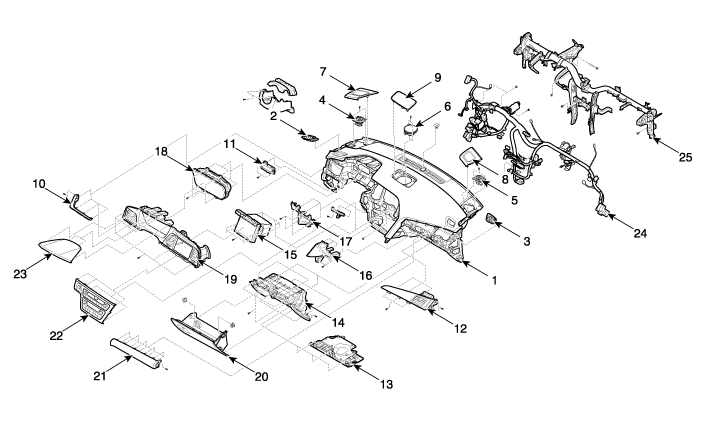

Components (2)

1. Main crash pad assembly
2. Side def nozzle [LH]
3. Side def nozzle [RH]
4. Side speaker assembly [LH]
5. Side speaker assembly [RH]
6. Center speaker assembly
7. Side speaker grill [LH]
8. Side speaker grill [RH]
9. Center speaker grill
10. Crash pad garnish assembly [LH]
11. Trunk open switch assembly
12. Crash pad garnish assembly [RH]

13. Crash pad under the cover [RH]
14. Glove box upper cover assembly
15. Front monitor assembly
16. Crash pad center lower cover [RH]
17. Crash pad center lower cover [LH]
18. Cluster gauge assembly
19. Center facia upper panel assembly
20. Glove box assembly
21. Crash pad passenger side garnish
22. Center facia lower panel assembly
23. Cluster facia upper panel assembly
24. Main crash pad wiring
25. Cowl cross bar assembly
