Components

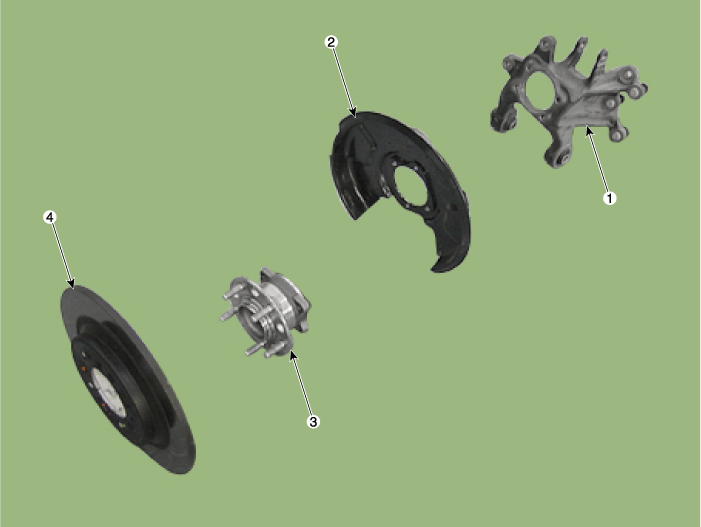

[EPB Type]

1. Rear carrier assembly
2. Dust cover
3. Rear hub assembly
4. Rear disc brake

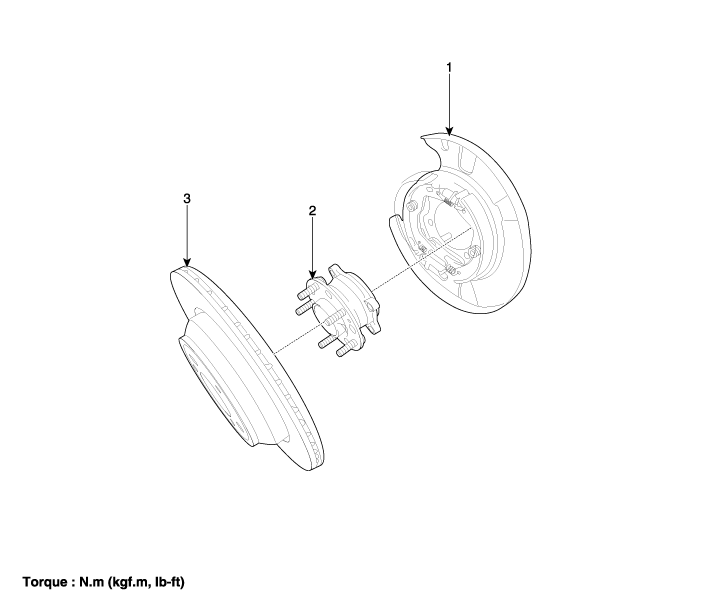

[General Type]

1. Parking brake assembly
2. Rear hub assembly
3. Rear disc brake

Rear Axle Assembly
...

Rear Hub - Carrier Repair procedures
Removal 1. Raise the vehicle, and make sure it is securely supported. 2. Remove the wheel cap (A).     Be careful not to damage to the wheel cap (A) when removing the it. ...
