Hyundai Sonata LF: Body Dimensions / Rear Body Body Repair

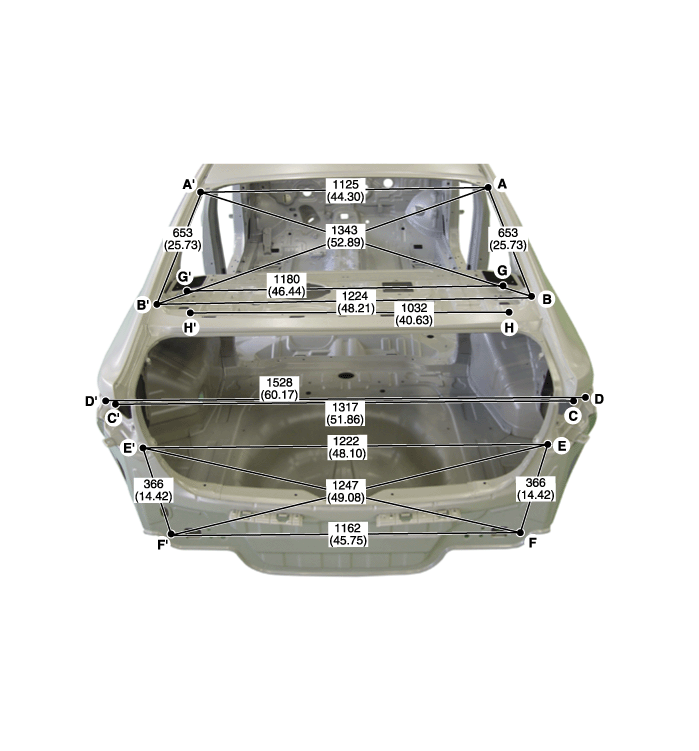

| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
|
|
|
| Side outer panel rear corner | Side outer panel rear corner | Side outer panel rear corner |
|
|
|
| Rear combination lamp mounting hole (O6) | Rear bumper mounting hole (8.5X8.5) | Rear bumper mounting hole (11X13) |
|
|
|
| Rear bumper mounting hole (11X13) | Rear seat belt retractor mounting hole (O15) | Rear seat belt retractor mounting hole (O15) |
| ||
| Trunk lid hinge mounting hole (O9) |
Interior Body Repair
Interior A * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Interior B * These dimensions indicated in this figure are actual-measurement dimensions...
Under Body Body Repair
Projected Dimensions * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Actual Measurement Dimensions * These dimensions indicated in this figure are actual-measurement dimensions...
