Hyundai Sonata LF: Body Dimensions / Under Body Body Repair

Rear Body Body Repair

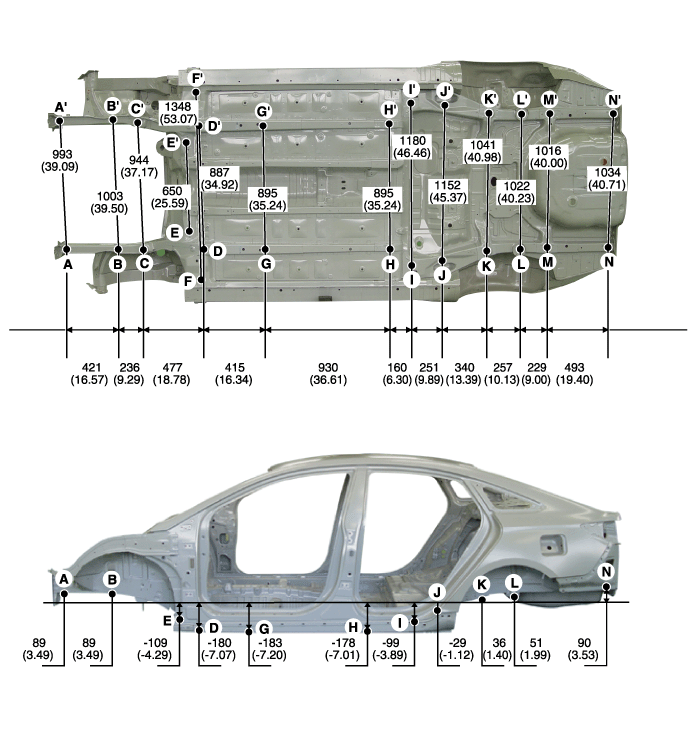

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Side outer panel rear cornerSide outer panel rear cornerSide outer panel rear cornerRear combination lamp mounting hole (O6)Rear bumper mounting hole (8...

Cross Member Body Repair

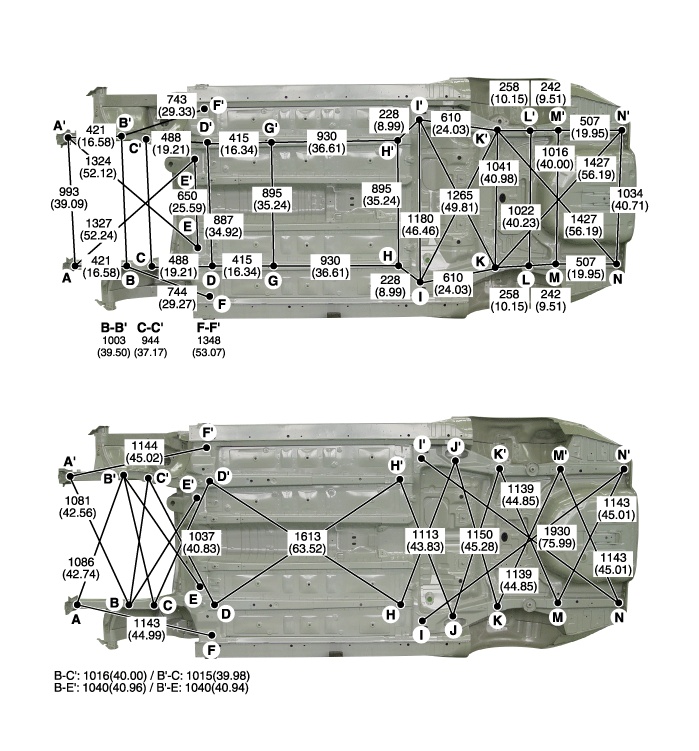

Front Cross Member * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Rear Cross Member * These dimensions indicated in this figure are actual-measurement dimensions...
