Hyundai Sonata LF: Body Dimensions / Interior Body Repair

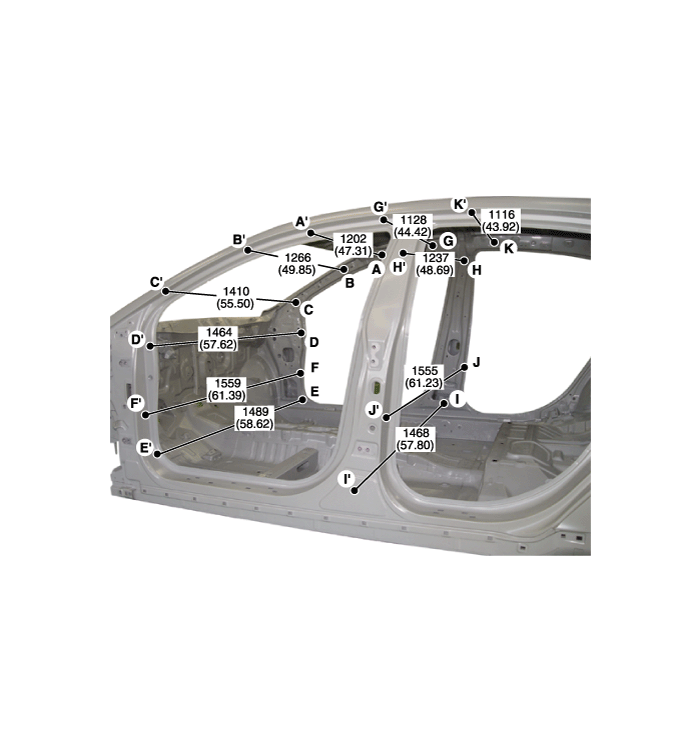

| Interior A |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |

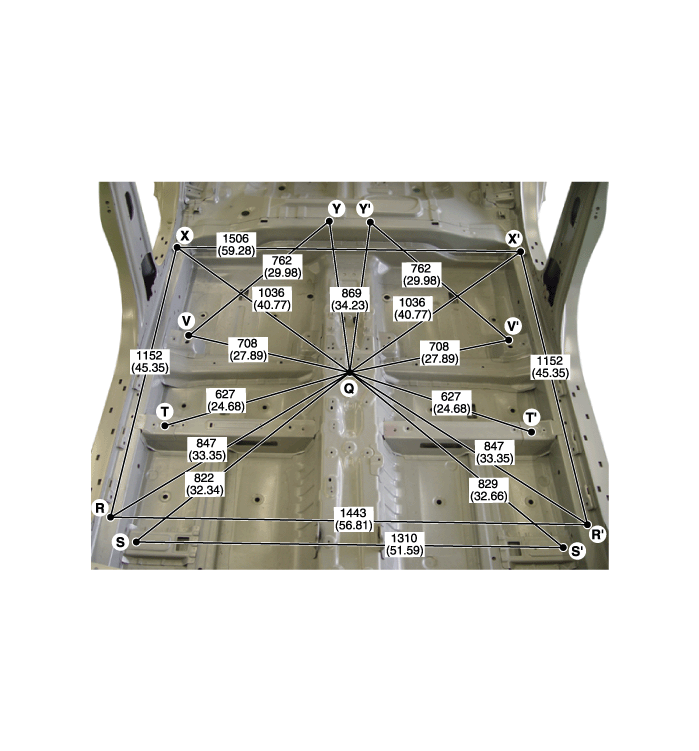

| Interior B |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |

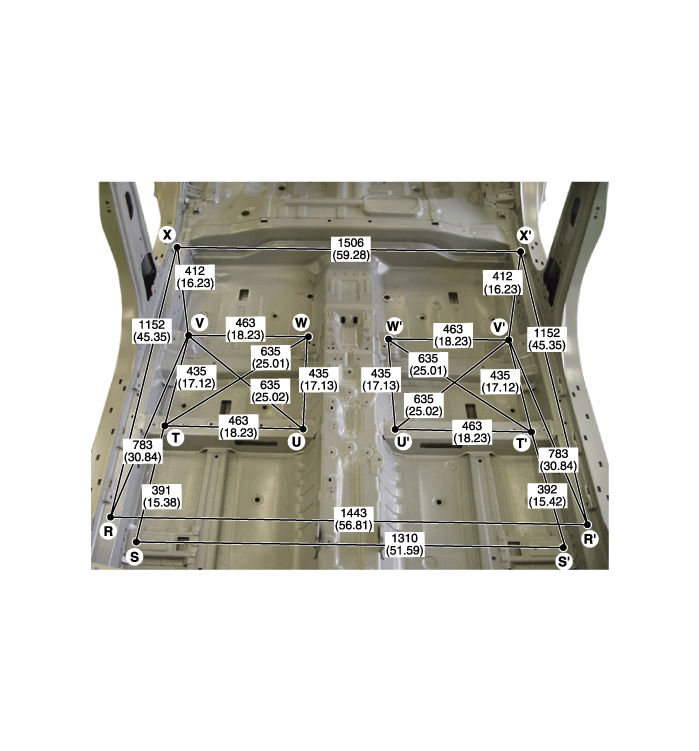

| Interior C |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
| Interior D |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
| Interior E |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
| Interior F |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
|
|
|
| Front pillar upper extension tooling hole (O7) | Curtain airbag mounting hole (O6.6) | Curtain airbag mounting hole (O6.6) |
|
|
|
| Cowl crossbar mounting hole (O9) | Cowl side trim mounting hole (O8.4) | Front door checker mounting hole (O13) |
|
|
|
| Curtain airbag mounting hole (O6.6) | Seat belt height adjuster upper mounting hole (O16) | Seat belt pretensioner mounting hole (O14) |
|
|
|
| Rear door checker mounting hole (O13) | Curtain airbag mounting hole (O6.6) | Rear pillar trim mounting hole (O6.6) |
|
|
|
| Rear door striker mounting hole (O13) | Quarter inner lower panel tooling hole (O16) | Quarter inner panel tooling hole (O6.6) |
|
|
|
| Quarter inner panel tooling hole (O7) | Quarter inner panel tooling hole (O7) | Center floor panel tooling hole (O9) |
|
|
|
| Side sill inner reinforcement tooling hole (O7) | Front step tooling hole (O10) | Front seat mounting hole (O13) |
|
|
|
| Front seat mounting hole (O11) | Front seat mounting hole (O11) | Front seat mounting hole (O11) |
|
|
|
| Center side sill corner | Rear floor panel tooling hole (O15) | Rear seat mounting hole (O18) |
|
|
|
| Quarter inner panel tooling hole (O6.6) | Quarter inner lower panel tooling hole (O5.5) | Rear floor extension tooling hole (O8) |
|
|
|
| Rear floor extension tooling hole (O8) | Rear floor panel mounting hole (O14) | Rear floor panel mounting hole (O14) |
|
| |
| Rear floor panel mounting hole (O13) | Rear transverse trim mounting hole (O8.4) |

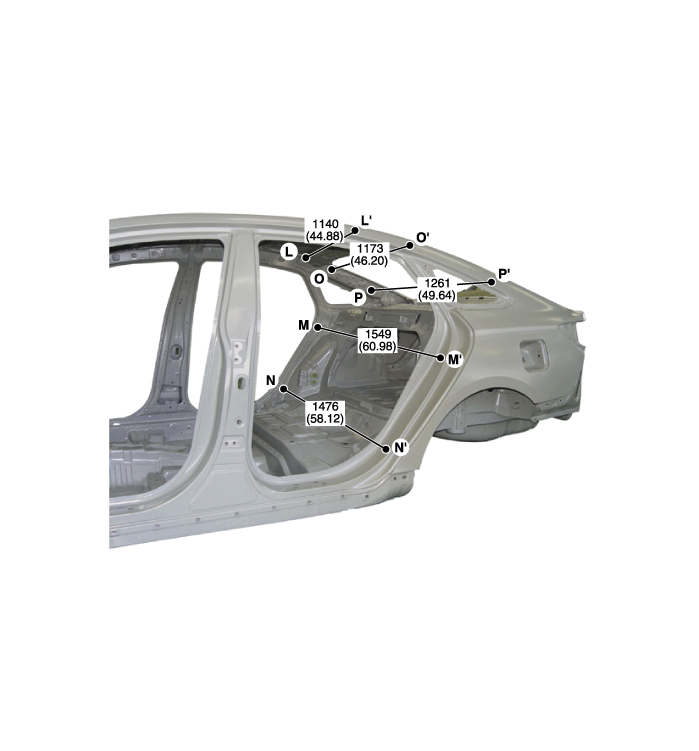

Side Body Body Repair
Side Body A * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Side Body B * These dimensions indicated in this figure are actual-measurement dimensions...

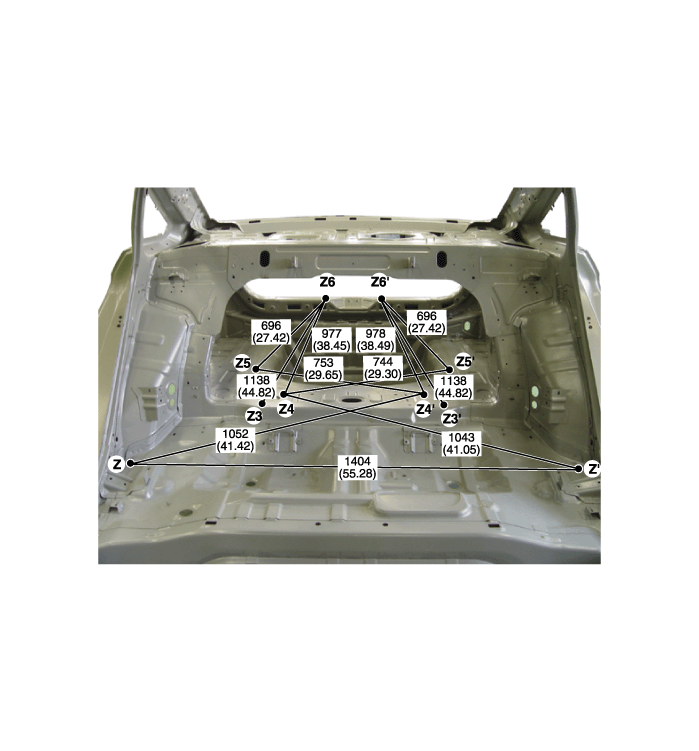

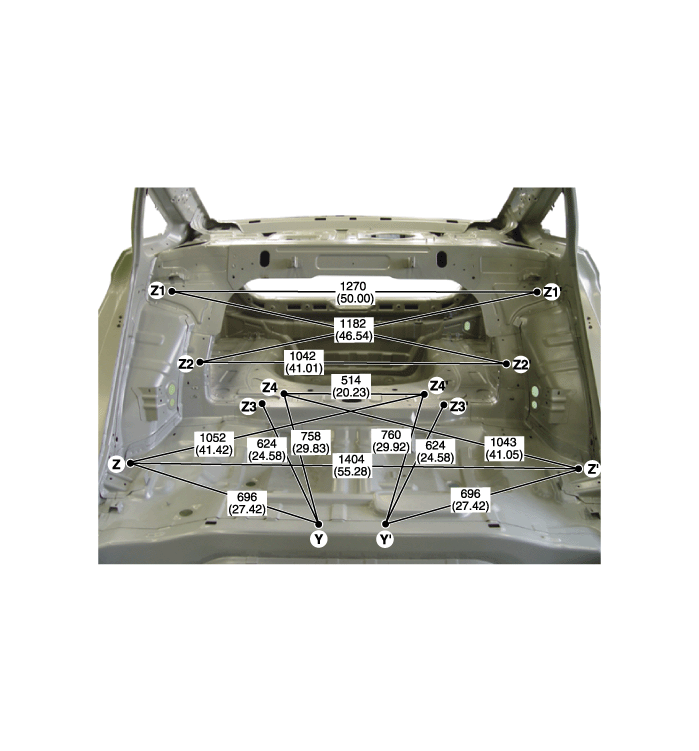

Rear Body Body Repair
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Side outer panel rear cornerSide outer panel rear cornerSide outer panel rear cornerRear combination lamp mounting hole (O6)Rear bumper mounting hole (8...
