Hyundai Sonata: Rear Seat / Rear Back Armrest Repair procedures

Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Back Armrest Repair procedures

Replacement

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

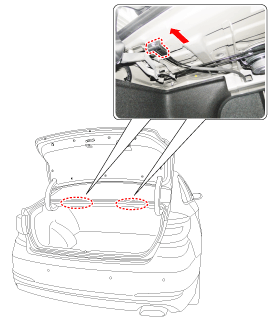

1.	Fold the rear seat back assembly (A) by pulling the folding lever in the direction of the arrow.

2.	Loosen the mounting nut of the rear back armrest after removing the cover (A) using a screw remover.

3.	Remove the rear back armrest (A) in the direction of the arrow.

4.	Install in the reverse order of removal.
