Hyundai Sonata LF: Seat Electrical / Power Seat Control Switch Schematic Diagrams

Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Seat Electrical / Power Seat Control Switch Schematic Diagrams

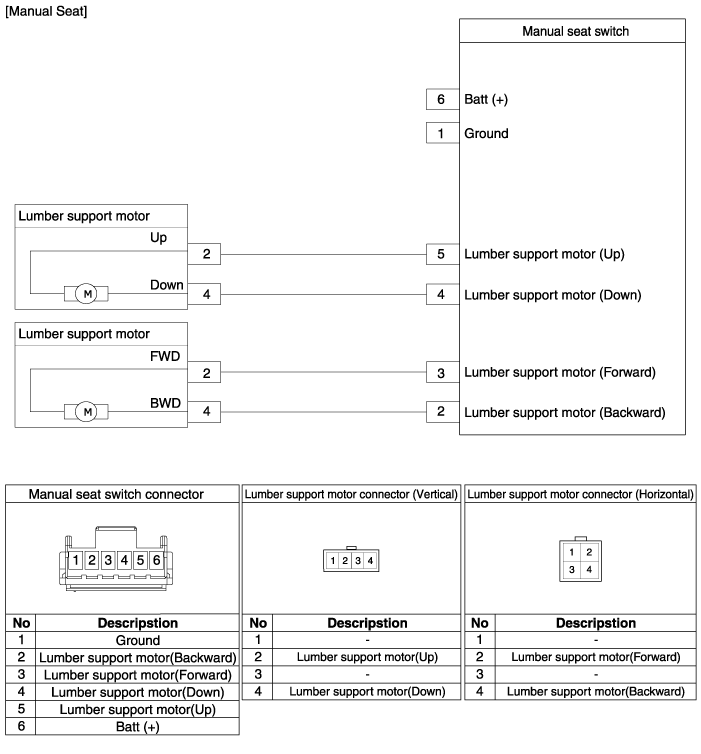

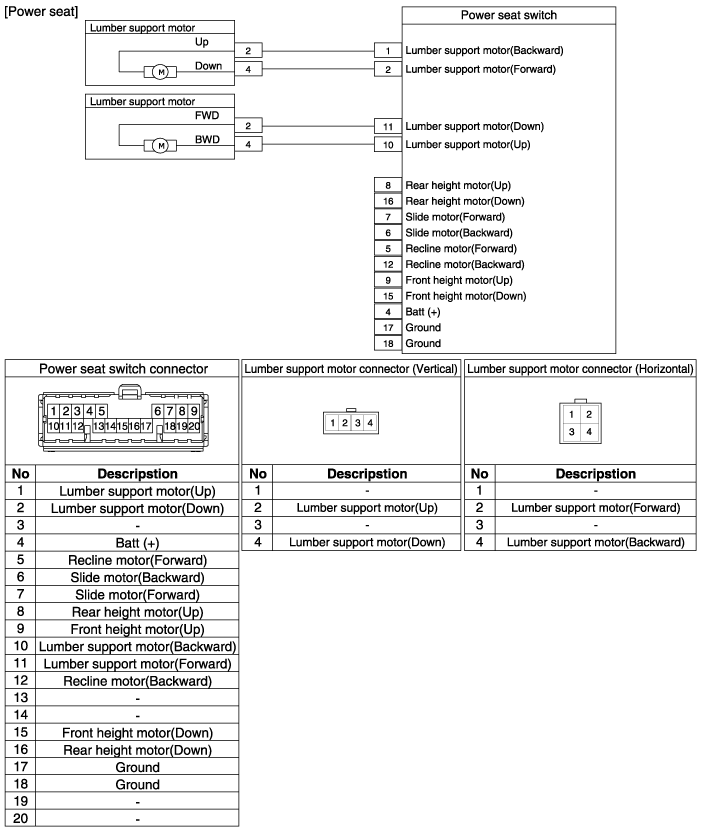

Circuit Diagram

    Power Seat Motor Repair procedures

    Inspection Diagnosis with GDS 1. The body electrocal system can be quickly diagnosed failed parts with vehicle diagnostic system (GDS). The diagnostic system (GDS) provides the following information...

    Power Seat Control Switch Repair procedures

    Inspection Diagnosis with GDS 1. The body electrocal system can be quickly diagnosed failed parts with vehicle diagnostic system (GDS). The diagnostic system (GDS) provides the following information...
