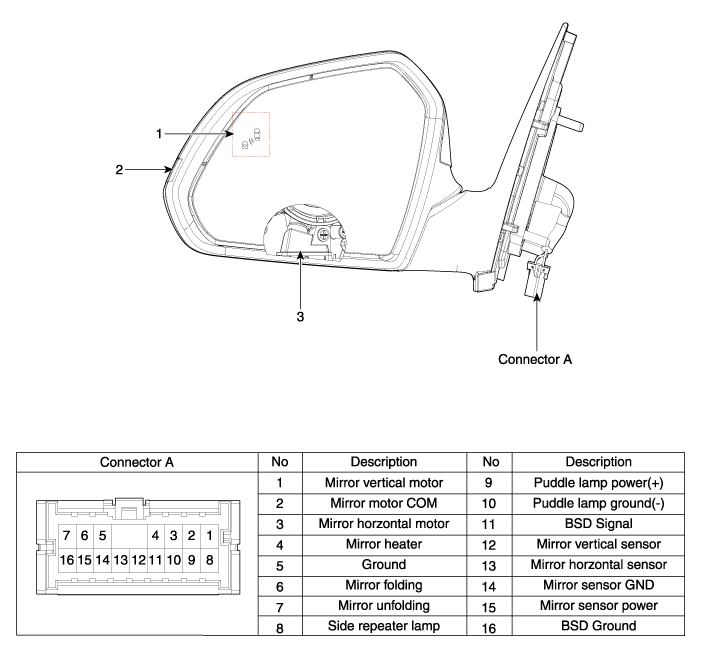

Components

1. BSD Indicator
2. Side repeater lamp
3. Puddle lamp

Power Door Mirror Switch Repair procedures
Inspection [Power Window Module (IMS)] 1. Disconnect the negative (-) battery terminal. 2. Remove the front left door trim. (Refer to Body - "Front Door Trim") 3. Disconnect the power mi ...

Power Door Mirror Actuator Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the front door quadrant inner cover (A). 3. Disconnect the power door mirror connector from the harness. 4. Apply ...
