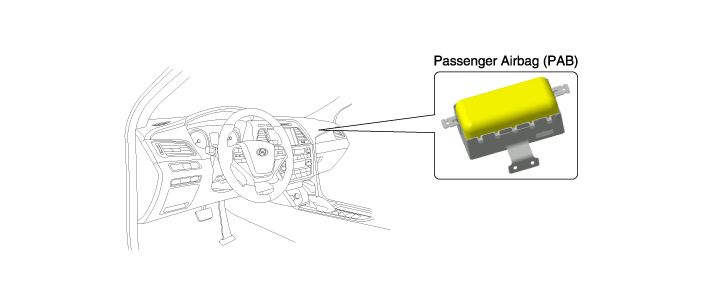

Hyundai Sonata LF: Airbag Module / Passenger Airbag (PAB) Module Components and Components Location

Passenger Airbag (PAB) Module Description and Operation

Description Passenger Airbag (PAB) module is located in the passenger crash pad. This PAB contains 2 firing squibs of airbag and 1 firing squib of active vent...

Passenger Airbag (PAB) Module Repair procedures

Removal 1. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 2. Remove the glove box housing. (Refer to Body - "Glove Box Upper Cover Assembly") 3...

Other information:

Hyundai Sonata LF 2014-2019 Service Manual: Intake Actuator Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the intake actuator connector. 3. Verify that the intake actuator operates to the fresh position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the intake actuator operates to the recirculation position when connected in reverse...

Hyundai Sonata LF 2014-2019 Service Manual: Troubleshooting

Troubleshooting SymptomSuspect AreaRemedy (Refer to page)Water leaks from panorama sunroofDirt accumulated in drain tubeClear dirt inside of drainClogged drain tubeBlow air into drain to remove dirtBroken or dislocated drain tube, defective or cracked clipCheck tube installation and flange contactDeteriorated roof lid weatherstripReplaceExcessive roof lid-to-body clearance and improperly fitted weatherstripAdjustWind noise around panorama sunroofLoosen or deformed deflector, gaps in body workRetighten adjust or replaceMisaligned weather stripReadjust or replace weather stripSunroof lid makes a noise when moveForeign particles lodged in guide railCheck drive cable and guide rails for foreign particlesLoosen guide rails and lidRetightenMotor runs but panorama sunroof does not move or moves only partiallyForeign particles lodged in guide railAdjust or replaceIncorrect engagement of motor pinion with drive cableDecrease in motor`s clutch slipping forceIncreased sunroof sliding resistance or interference of sunroof with drive cables, weatherstrip, etc...
