Hyundai Sonata: Rear Parking Assist System / Parking Assist Sensor Components and Components Location

Description and Operation

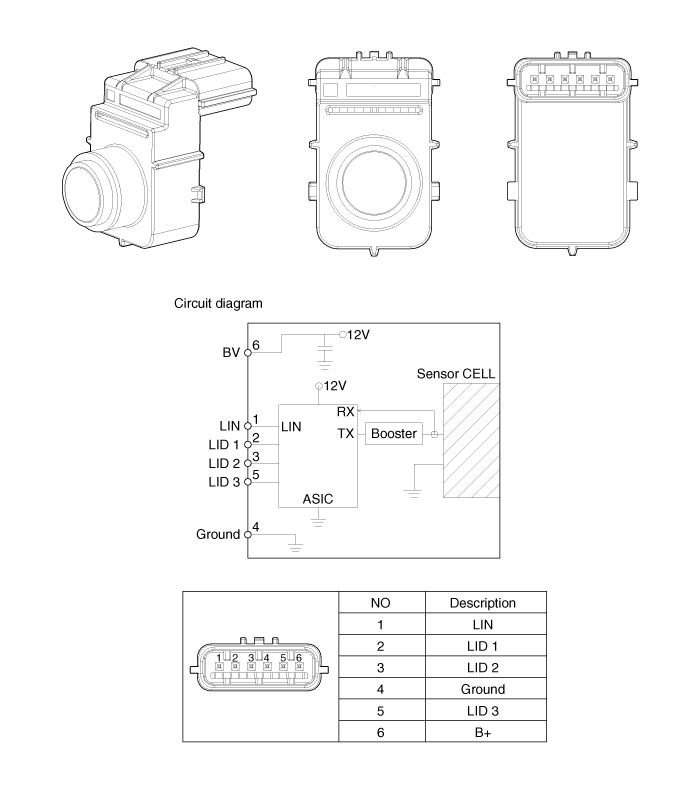

System Overview RPAS (Rear Parking Assist System) is an electronic driving aid that warns the driver to be cautious while parking or in low speed environments. The sensor uses ultrasonic waves ...

Parking Assist Sensor Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front/rear bumper cover. (Refer to Body - "Front Bumper Cover") (Refer to Body - "Rear Bumper Cover") 3. Disconnect ...
