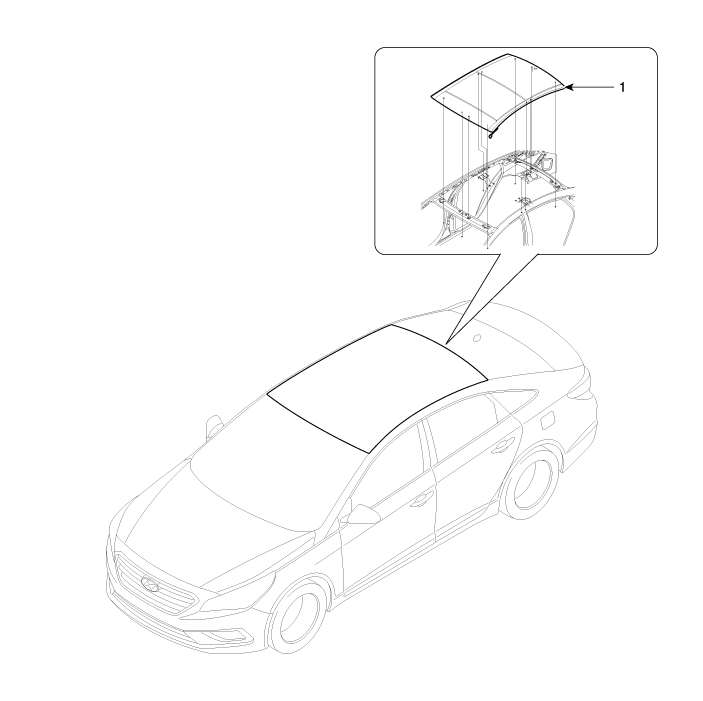

Hyundai Sonata LF: Panorama Sunroof / Panorama Sunroof Assembly Components and Components Location

Roller Blind Repair procedures

Removal 1. Open the roller blind using the panorama sunroof switch.     • Leave 10 ~ 20cm (0.3937 ~ 0.7874 in) of the roller blind unopened...

Panorama Sunroof Assembly Repair procedures

Removal     • In order to remove the panorama sunroof assembly, use the tools shown in the following figure: [Tooling Diagram] Square wire Insert-type wire grip [Tooling Assembly Diagram] • Insert and affix square wire into the insert hole of the wire grip ...
