Hyundai Sonata LF: Rear Seat / Rear Seat Folding Lever Repair procedures
| Replacement |
| 1. |

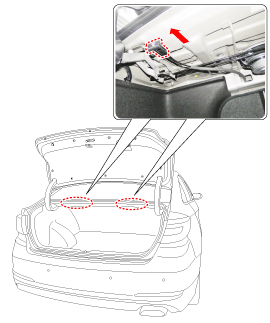

Fold the rear seat back assembly (A) by pulling the folding lever in the direction of the arrow.
|
| 2. |
After loosening the mounting bolts, then remove the rear seat folding lever (A).
|
| 3. |
Install in the reverse order of removal. |
