Hyundai Sonata LF: Body (Interior and Exterior) / Front Seat Belt

Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Front Seat Belt

Components and Components Location

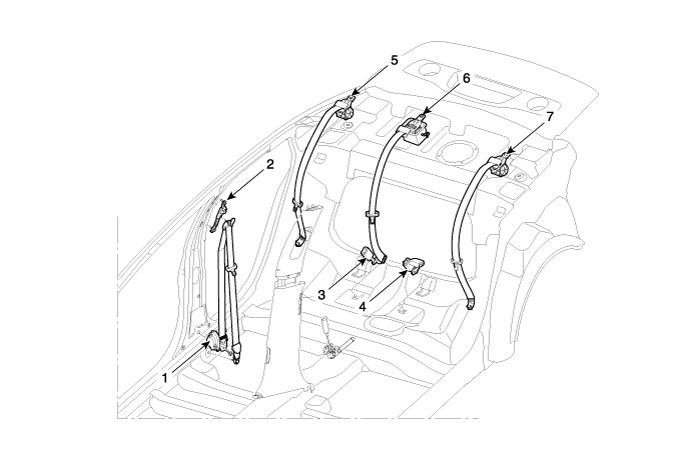

Components

1. Front seat belt retractor
2. Height adjuster
3. Rear seat belt buckle [RH]
4. Rear seat belt buckle [LH]
5. Rear seat belt retractor [RH]
6. Rear center seat belt retractor
7. Rear seat belt retractor [LH]

Front Seat Belt Retractor Components and Components Location

Component Location

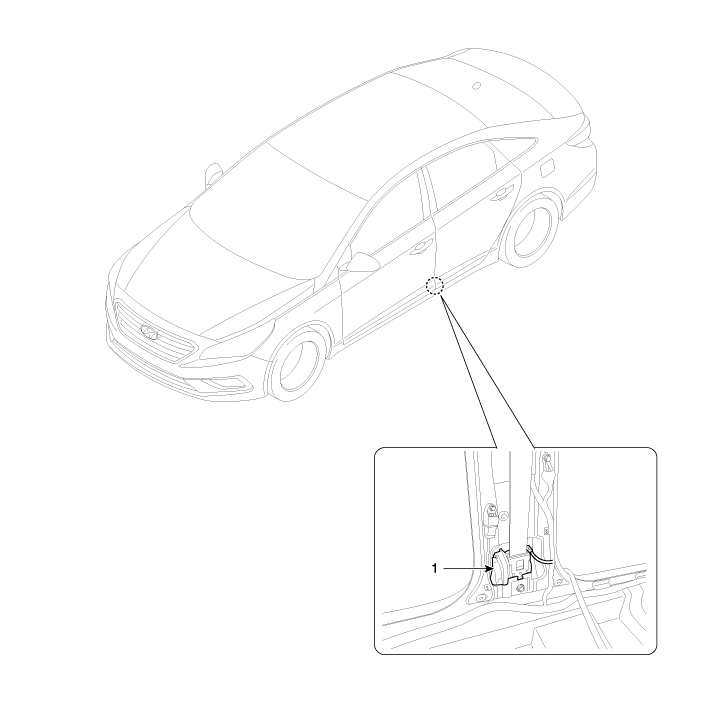

1. Front seat belt retractor


Front Seat Belt Retractor Repair procedures

Replacement

•
When installing the belt, make sure not to damage the retractor.
1.
Remove the center pillar lower trim.
(Refer to Interior Trim - "Center Pillar Trim")
2.
Remove the center pillar upper trim.
(Refer to Interior Trim - "Center Pillar Trim")
3.
After loosening the mounting bolt, then remove the front seat belt upper anchor (A).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

4.
After disconnecting the connectors (A) by pushing the lock pin, loosen the mounting bolts, and then, remove the front seat belt retrator (B).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

5.
Install in the reverse order of removal.

•
Make sure the connector is plugged in properly.
•
Replace any damaged clips.

Height Adjust Components and Components Location

Component Location

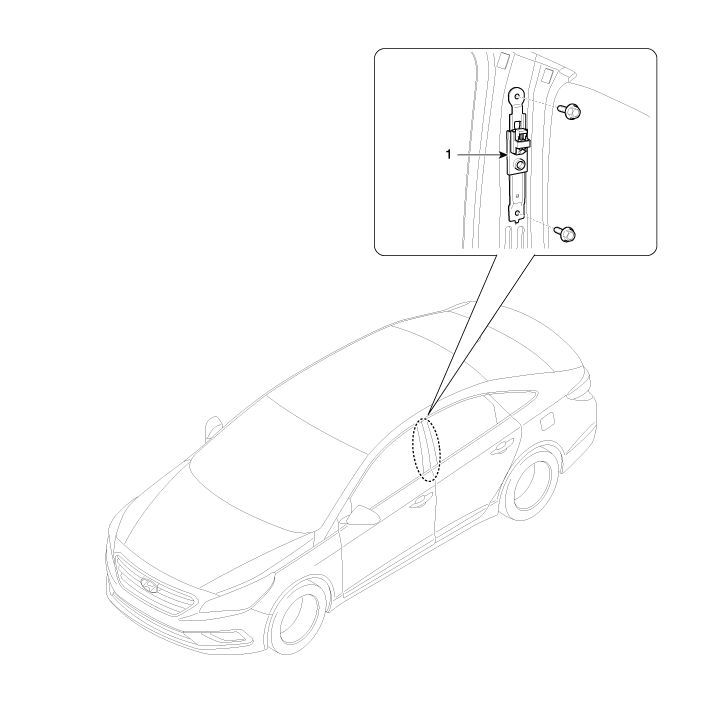

1. Height adjust


Height Adjust Repair procedures

Replacement
1.
Remove the front seat belt upper anchor.
(Refer to Front Seat Belt - "Front Seat Belt Retractor")
2.
After loosening the mounting bolts, then remove the height adjust (A).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5kgf.m, 28.9 ~ 39.8 lb-ft)

3.
Install in the reverse order of removal.

•
Replace any damaged clips.

Front Seat Belt Buckle Components and Components Location

Component Location

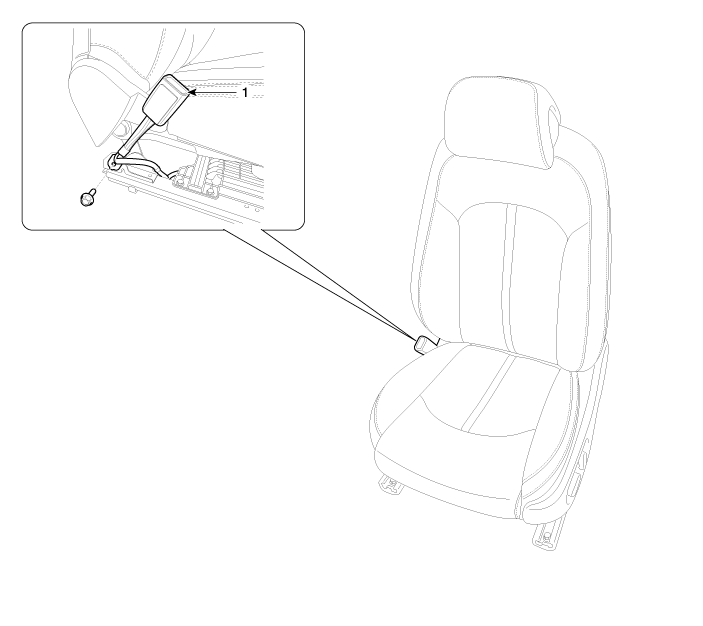

1. Front seat belt buckle


Front Seat Belt Buckle Repair procedures

Replacement
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.
Remove the front seat belt buckle connector wiring harness (A).

3.
After loosening the mounting bolt, then remove the front seat belt buckle (A).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5kgf.m, 28.9 ~ 39.8 lb-ft)

4.
Install in the reverse order of removal.

•
Make sure the connector is plugged in properly.
•
Replace any damaged clips.

    Rear Seat Folding Lever Repair procedures

    Replacement 1. Fold the rear seat back assembly (A) by pulling the folding lever in the direction of the arrow. 2. After loosening the mounting bolts, then remove the rear seat folding lever (A)...

    Rear Seat Belt

    Rear Seat Belt Retractor Components and Components Location Component Location 1. Rear seat belt retractor [LH]2. Rear seat belt retractor [RH] Rear Seat Belt Retractor Repair procedures Replacement     • When installing the belt, make sure not to damage the retractor...
