Hyundai Sonata LF: Panorama Sunroof / Roller Blind Repair procedures

Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Panorama Sunroof / Roller Blind Repair procedures

Removal

Open the roller blind using the panorama sunroof switch.

•	Leave 10 ~ 20cm (0.3937 ~ 0.7874 in) of the roller blind unopened.

2.	Remove the roof trim. (Refer to Roof Trim - "Roof Trim Assembly")

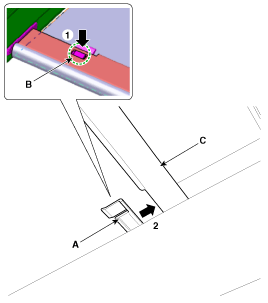

3.	Remove the roller blind bar (C) by pressing the top part of the lock pin (B) located on the both sides of the roller blind shoe (A).

4.	Put a fixed pin (B) into the hole located inside the groove of the right side roller blade side bracket (A). Becareful not to release tension.

5.	Remove the roller blind lower support (A) by loosening the mounting screws.

Installation

1.	Install the roller blind side bracket (A) fit into the guide groove (B).

2.	Tighten the mounting screws after installing the roller blind lower support (A).

3.	Remove the fixed pin (B) located inside the right side roller blade side bracket (A).

4.	Install the roller blind bar (A) on top of the roller blind shoe (B).

5.	Put the roller blind bar (A) into the roller blind shoe (B).

6.	Install the roof trim.

7.	Completely close the movable glass using the panorama sunroof switch.

Panorama Sunroof Deflector Repair procedures

Replacement 1. Completely open the movable glass using the panorama sunroof switch. 2. Loosen he mounting screws (A) located at the side of the panorama sunroof deflector...
