Hyundai Sonata: SRSCM / Occupant Classification Sensor (OCS) Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Restraint / SRSCM / Occupant Classification Sensor (OCS) Components and Components Location

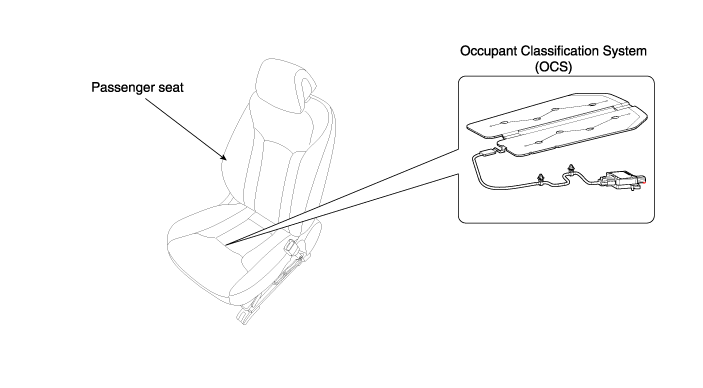

Components

Schematic Diagrams
Circuit Diagram (1) Circuit Diagram (2) Circuit Diagram (3) SRSCM Connector Terminal PinFunction (Connector A)PinFunction (Connector B)A1IGN-1B1Side impact sensor front, Passenger-High (+)A2Fr ...

Occupant Classification Sensor (OCS) Description and Operation
Description In order to make normal activation of airbag system, SRSCM detects DTC(s) for the Occupant Classification System (OCS). If the seat is occupied, OCS detects passenger presences stat ...
