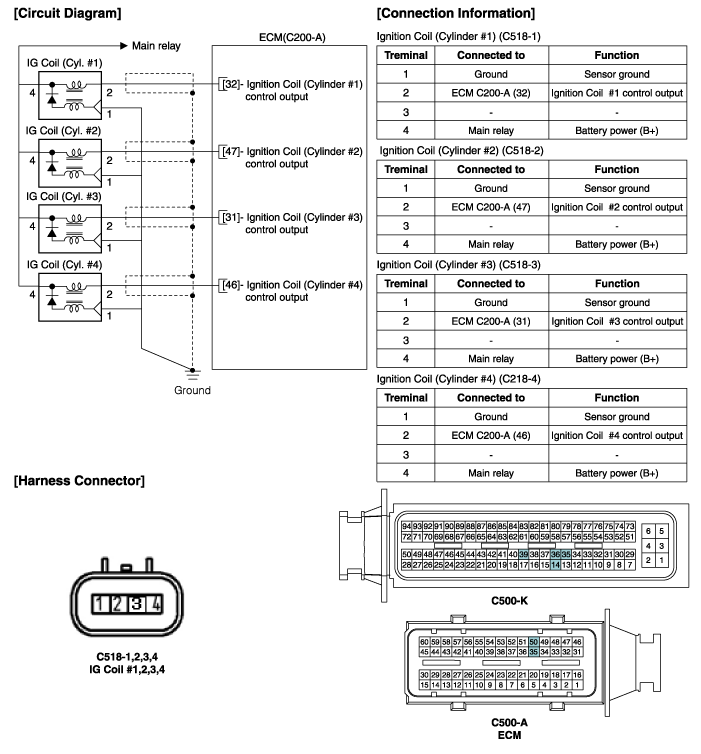

Hyundai Sonata LF: Ignition System / Ignition Coil Schematic Diagrams

Ignition Coil Specifications

S..

Ignition Coil Repair procedures

Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the engine cover. 3. Disconnect the ignition coil connector (A)...
